Example 11: Lunar Lander Navigation with IMU, Altimeter, Crater Bearings, and LunaNet

A lunar lander on powered descent to a south-pole site navigates with an error-state INS multiplicative EKF (MEKF) that fuses a full IMU (Kalibr noise model), a nadir radar altimeter (height above DEM terrain), crater-landmark bearings (terrain-relative navigation against a synthetic crater map), and LunaNet / LANS pseudoranges, estimating the IMU biases online. Like Example 10 it is built on LuPNT’s agent-based architecture:

• a ``World`` — the shared environment (frame MOON_PA, Moon gravity, the LOLA DEM site).

• a thin ``Lander`` agent hosting two applications: a ``LanderGncApp`` (guidance/control) that owns the descent truth trajectory (a built-in smoothstep, or a guidance-law trajectory supplied via LanderGncApp.set_reference_trajectory_enu) and writes the lander truth state, and a ``LanderNavApp`` (the INS MEKF) that reads that truth to synthesize the crater map + measurements each epoch from the World.

The scenario lives in configs/lander_nav.yaml. We run it once, in a standalone script (full-sensor descent plus a sensor ablation), and cache the results as CSV; this notebook reads and plots them.

Run the simulation first (from the repo root):

python python/examples/ex11_run_lander_nav.py

This writes CSVs to output/python_examples/ex11_data/. Re-run it whenever you change configs/lander_nav.yaml.

import json
from pathlib import Path

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

def zoom_ylim(ax, *series, frac=0.4, pad=1.4):
    """Set a symmetric y-limit to the post-convergence range (last 1-frac of the run) of the
    given series, so the plot illustrates the converged behavior rather than the large initial
    transient."""
    h = int(len(series[0]) * frac)
    m = max(float(np.nanmax(np.abs(np.asarray(s)[h:]))) for s in series)
    if m > 0:
        ax.set_ylim(-pad * m, pad * m)

DATA = None
for _b in [Path.cwd(), *Path.cwd().parents]:
    if (_b / "output/python_examples/ex11_data/meta.json").exists():
        DATA = _b / "output/python_examples/ex11_data"
        break
    if (_b / "ex11_data/meta.json").exists():
        DATA = _b / "ex11_data"
        break
assert DATA is not None, "Run `python python/examples/ex11_run_lander_nav.py` first to generate ex11_data/."

meta = json.load(open(DATA / "meta.json"))
s = pd.read_csv(DATA / "series_all.csv")
craters = pd.read_csv(DATA / "craters.csv")
ablation = pd.read_csv(DATA / "ablation.csv")
dem_x = np.load(DATA / "dem_x.npy")
dem_y = np.load(DATA / "dem_y.npy")
dem_z = np.load(DATA / "dem_elevation.npy")

t = s["t_s"].values
print(f"Site: {meta['site_id']} ({meta['site_name']})  epochs={len(s)}  dt={meta['dt_s']} s")
print(f"final 3D position error (all sensors): {meta['final_pos_err_norm_all']:.2f} m")
print(f"touchdown altitude (truth): {meta['touchdown_alt_truth_m']:.2f} m")

Site: Site01 (Connecting ridge)  epochs=601  dt=0.5 s
final 3D position error (all sensors): 5.06 m
touchdown altitude (truth): 15.00 m

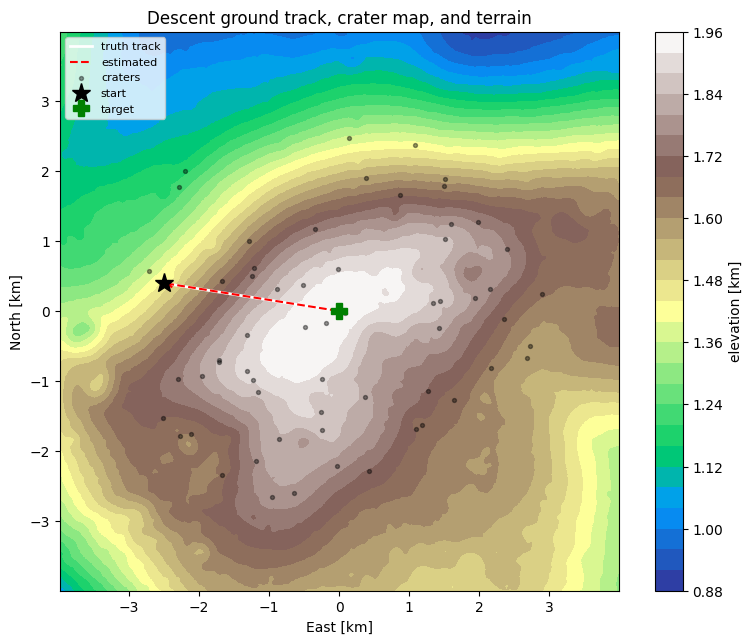

1. Descent trajectory over the terrain

The powered descent glides from ~2.5 km downrange / 2 km altitude to a hover over the target, following the terrain-referenced altitude profile.

cx, cy = dem_x.mean(), dem_y.mean()
Xc = (dem_x - cx) / 1e3
Yc = (dem_y - cy) / 1e3

fig, ax = plt.subplots(figsize=(8, 6.5))
cf = ax.contourf(Xc, Yc, dem_z / 1e3, levels=30, cmap="terrain")
plt.colorbar(cf, ax=ax, label="elevation [km]")
ax.plot(s["traj_truth_x"] / 1e3, s["traj_truth_y"] / 1e3, "w-", lw=2, label="truth track")
ax.plot(s["traj_est_x"] / 1e3, s["traj_est_y"] / 1e3, "r--", lw=1.5, label="estimated")
ax.scatter(craters["east_m"] / 1e3, craters["north_m"] / 1e3, s=8, c="k", alpha=0.4, label="craters")
ax.plot(s["traj_truth_x"].iloc[0] / 1e3, s["traj_truth_y"].iloc[0] / 1e3, "k*", ms=14, label="start")
ax.plot(0, 0, "gP", ms=12, label="target")
ax.set_xlabel("East [km]"); ax.set_ylabel("North [km]")
ax.set_title("Descent ground track, crater map, and terrain")
ax.set_aspect("equal"); ax.legend(loc="upper left", fontsize=8)
plt.tight_layout(); plt.show()

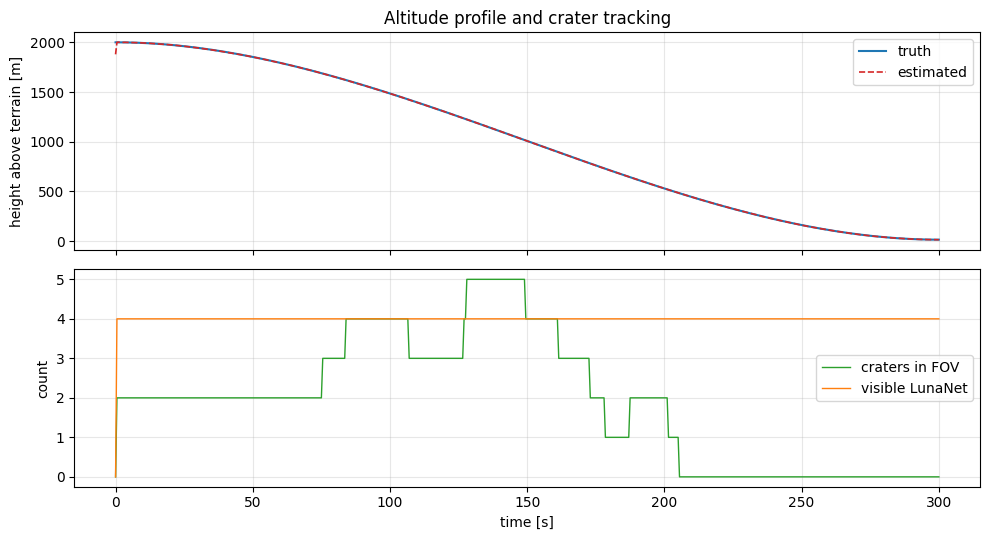

2. Altitude profile and altimeter performance

Truth vs. estimated height above the terrain during descent, and the number of craters tracked per epoch.

fig, (a1, a2) = plt.subplots(2, 1, figsize=(10, 5.5), sharex=True)
a1.plot(t, s["alt_truth"], "C0", lw=1.5, label="truth")
a1.plot(t, s["alt_est"], "C3--", lw=1.2, label="estimated")
a1.set_ylabel("height above terrain [m]"); a1.grid(alpha=0.3); a1.legend()
a1.set_title("Altitude profile and crater tracking")
a2.plot(t, s["n_craters"], "C2", lw=1, label="craters in FOV")
a2.plot(t, s["n_visible_sat"], "C1", lw=1, label="visible LunaNet")
a2.set_ylabel("count"); a2.set_xlabel("time [s]"); a2.grid(alpha=0.3); a2.legend()
plt.tight_layout(); plt.show()

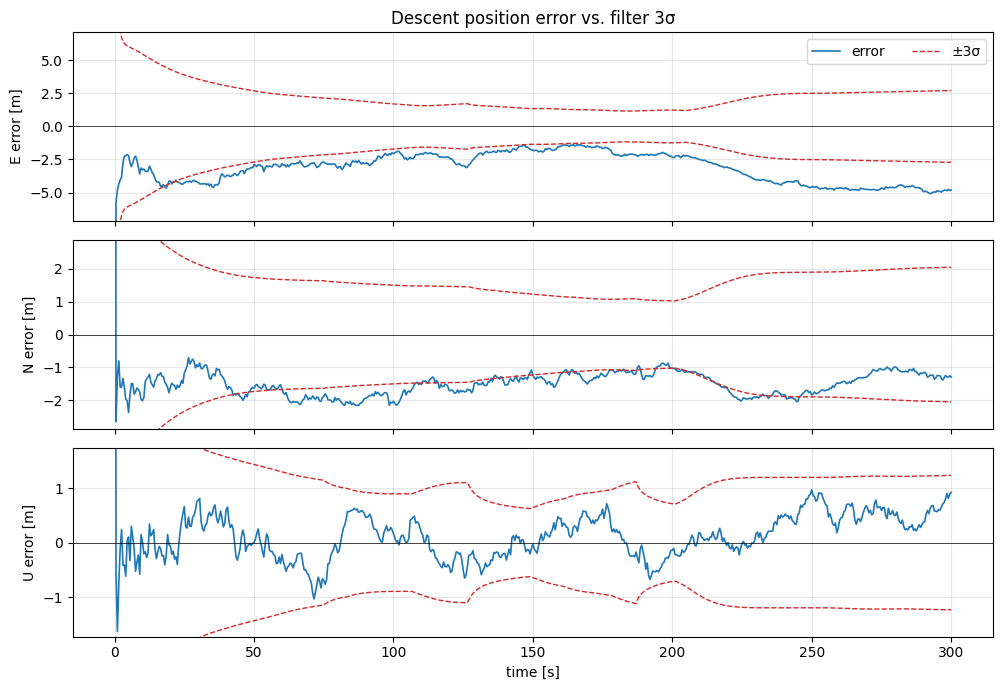

3. Position error vs. filter 3σ (East / North / Up)

fig, axes = plt.subplots(3, 1, figsize=(10, 7), sharex=True)
for ax, (lbl, ec, sc) in zip(axes, [("E", "pos_err_x", "pos_sigma_x"),
                                     ("N", "pos_err_y", "pos_sigma_y"),
                                     ("U", "pos_err_z", "pos_sigma_z")]):
    ax.plot(t, s[ec], "C0", lw=1.2, label="error")
    ax.plot(t, 3 * s[sc], "C3--", lw=1, label="±3σ")
    ax.plot(t, -3 * s[sc], "C3--", lw=1)
    ax.axhline(0, color="k", lw=0.5); ax.set_ylabel(f"{lbl} error [m]"); ax.grid(alpha=0.3)
    zoom_ylim(ax, s[ec], 3 * s[sc])
axes[0].legend(loc="upper right", ncol=2); axes[-1].set_xlabel("time [s]")
axes[0].set_title("Descent position error vs. filter 3σ")
plt.tight_layout(); plt.show()

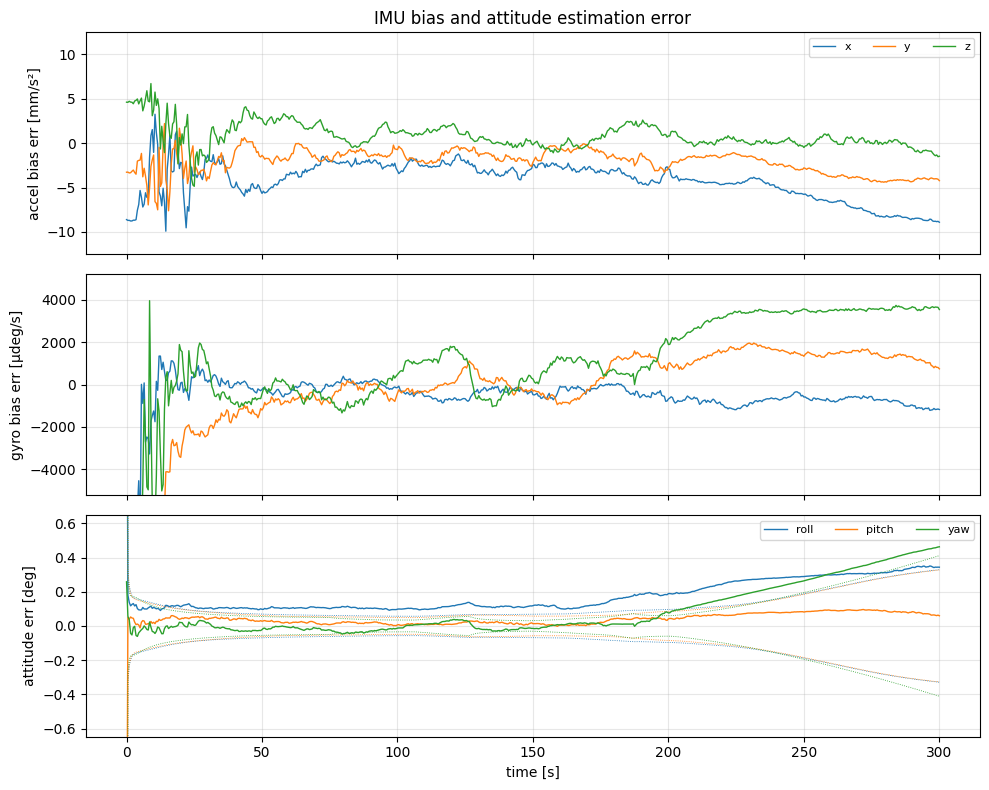

4. IMU bias and attitude estimation

fig, axes = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
for c, col in zip("xyz", ["C0", "C1", "C2"]):
    axes[0].plot(t, s[f"accel_bias_err_{c}"] * 1e3, col, lw=1, label=f"{c}")
    axes[1].plot(t, s[f"gyro_bias_err_{c}"] * 1e6 * 180 / np.pi, col, lw=1, label=f"{c}")
    axes[2].plot(t, s[f"att_err_deg_{c}"], col, lw=1, label=["roll", "pitch", "yaw"]["xyz".index(c)])
    axes[2].plot(t, 3 * s[f"att_sigma_deg_{c}"], col, lw=0.6, ls=":")
    axes[2].plot(t, -3 * s[f"att_sigma_deg_{c}"], col, lw=0.6, ls=":")
axes[0].set_ylabel("accel bias err [mm/s²]"); axes[0].legend(ncol=3, fontsize=8)
axes[1].set_ylabel("gyro bias err [µdeg/s]")
axes[2].set_ylabel("attitude err [deg]"); axes[2].legend(ncol=3, fontsize=8)
for ax in axes: ax.grid(alpha=0.3)
zoom_ylim(axes[0], *[s[f"accel_bias_err_{c}"] * 1e3 for c in "xyz"])
zoom_ylim(axes[1], *[s[f"gyro_bias_err_{c}"] * 1e6 * 180 / np.pi for c in "xyz"])
zoom_ylim(axes[2], *[s[f"att_err_deg_{c}"] for c in "xyz"], *[3 * s[f"att_sigma_deg_{c}"] for c in "xyz"])
axes[-1].set_xlabel("time [s]")
axes[0].set_title("IMU bias and attitude estimation error")
plt.tight_layout(); plt.show()

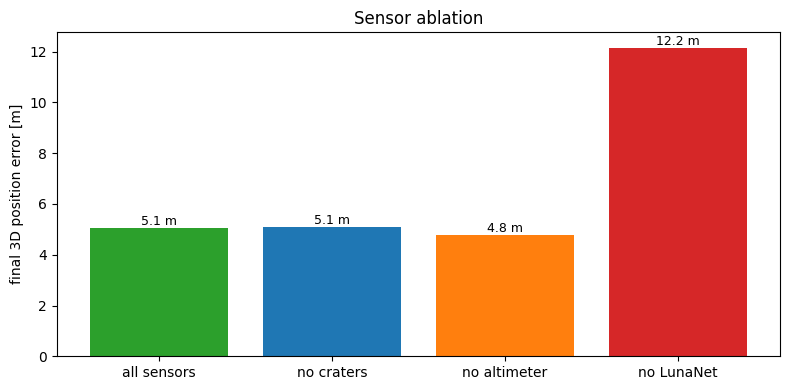

5. What does each sensor buy? (ablation study)

Final 3D position error with each aiding source disabled in turn: craters → horizontal, altimeter → vertical, LunaNet → absolute position.

fig, ax = plt.subplots(figsize=(8, 4))
colors = ["C2", "C0", "C1", "C3"]
ax.bar(ablation["config"], ablation["final_pos_err_norm_m"], color=colors)
for i, v in enumerate(ablation["final_pos_err_norm_m"]):
    ax.text(i, v, f"{v:.1f} m", ha="center", va="bottom", fontsize=9)
ax.set_ylabel("final 3D position error [m]")
ax.set_title("Sensor ablation")
plt.tight_layout(); plt.show()
print(ablation.to_string(index=False))

      config  final_pos_err_norm_m
 all sensors              5.064209
  no craters              5.107854
no altimeter              4.762747
  no LunaNet             12.154069

Summary

A LanderNavApp (an INS MEKF), co-hosted with a LanderGncApp (guidance) on a thin Lander agent, fuses IMU + radar altimeter + crater bearings + LunaNet pseudoranges over a powered descent, estimating the IMU biases online. The scenario is described in configs/lander_nav.yaml; a guidance-law trajectory can be injected as truth via the guidance app’s set_reference_trajectory_enu(...) before sim.run(). The ablation shows each aiding source’s distinct contribution — craters constrain horizontal position, the altimeter the vertical channel, and LunaNet the absolute position and clock.
