Example 3: GNSS Interface Tutorial¶
This tutorial exercises LuPNT’s GNSS file interfaces end to end: it visualizes the GPS, Galileo, and QZSS constellations, inspects transmit-antenna gain patterns, downloads and parses SP3 precise + BRDC broadcast ephemerides with the native C++ loaders (pnt.Sp3Loader / pnt.RinexNavLoader), applies antenna phase-center-offset corrections, compares broadcast against precise orbits and clocks, and plots the satellites’ yaw-steering attitude.
[1]:
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.lines as mlines
import plotly.graph_objects as go
from datetime import datetime
import os
from pathlib import Path
import os, sys
from pathlib import Path
# Use THIS repo's pylupnt/data, not a stale copy on a global PYTHONPATH (~/.zshrc) or kernelspec.
for _b in [Path.cwd(), *Path.cwd().parents]:
if (_b / "python/pylupnt/__init__.py").exists():
sys.path.insert(0, str((_b / "python").resolve()))
if (_b / "data/LuPNT_data/ephemeris").is_dir():
os.environ["LUPNT_DATA_PATH"] = str((_b / "data/LuPNT_data").resolve())
break
import pylupnt as pnt
# SP3 / BRDC / ANTEX files are parsed by LuPNT's native C++ loaders
# (pnt.Sp3Loader, pnt.RinexNavLoader, pnt.AntexLoader) -- see the loading cell below.
def find_lupnt_data_dir():
"""Locate the LuPNT_data directory regardless of the notebook's working directory.
Prefers LUPNT_DATA_PATH (set by the pixi activation / the `lupnt` Jupyter kernel), then
searches upward from the cwd for `data/LuPNT_data` (repo layout) or a top-level
`LuPNT_data`, so the notebook works even when launched without the env var. This keeps
the data at the project root instead of expecting a copy next to this notebook."""
env = os.environ.get("LUPNT_DATA_PATH")
if env and Path(env).is_dir():
return Path(env).resolve()
for base in [Path.cwd(), *Path.cwd().parents]:
for candidate in (base / "data" / "LuPNT_data", base / "LuPNT_data"):
if candidate.is_dir():
return candidate.resolve()
raise FileNotFoundError(
"Could not locate LuPNT_data. Set LUPNT_DATA_PATH (e.g. run `pixi run install-kernel` "
"and select the 'LuPNT (pixi)' kernel) or start Jupyter from the repository root."
)
DATA_DIR = find_lupnt_data_dir()
print(f"Using LuPNT_data: {DATA_DIR}")
# Host heavy interactive figures on lupnt-doc-assets instead of embedding them.
import sys as _sys
from pathlib import Path as _Path
for _p in [_Path.cwd(), *_Path.cwd().parents]:
if (_p / "python" / "examples" / "_doc_assets.py").exists():
_sys.path.insert(0, str(_p / "python" / "examples"))
break
from _doc_assets import embed_plotly, embed_cesium_scene
[00.00][PyLuPNT] Initializing
Using LuPNT_data: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/data/LuPNT_data
Part 1: GNSS constellation visualization¶
Two-line elements (TLEs) encode an approximate satellite orbit at a reference epoch. LuPNT’s pnt.TLE class loads the element sets and propagates each satellite to requested epochs.
System |
Typical altitude |
Inclination |
Period |
|---|---|---|---|
GPS |
20,200 km |
55 deg |
about 12 h |
Galileo |
23,222 km |
56 deg |
about 14 h |
QZSS |
GEO/IGSO/MEO |
mixed |
about 24 h |
The goal here is not precision orbit determination; it is a quick way to understand constellation geometry and coverage.
[2]:
# ── Epoch ─────────────────────────────────────────────────────────────────────
T0_TDB = pnt.gregorian_to_time(2025, 1, 1, 0, 0, 0) # LuPNT internal (≈ TDB)
T0_TAI = pnt.convert_time(T0_TDB, pnt.Time.TDB, pnt.Time.TAI)
T0_TDB_scalar = float(T0_TDB)
TLE_DIR = os.path.join(DATA_DIR, "tle/2025_01_01")
def load_tles(filepath):
"""Parse a 3-line TLE file and return list of pnt.TLE objects."""
with open(filepath) as f:
lines = [l.strip() for l in f if l.strip()]
tles, i = [], 0
while i + 2 < len(lines):
if lines[i].startswith("1") or lines[i].startswith("2"):
i += 1
continue
if lines[i + 1].startswith("1") and lines[i + 2].startswith("2"):
tles.append(pnt.TLE.from_lines(lines[i], lines[i + 1], lines[i + 2]))
i += 3
else:
i += 1
return tles
gps_tles = load_tles(os.path.join(TLE_DIR, "gps_2025_01_01.txt"))
gal_tles = load_tles(os.path.join(TLE_DIR, "galileo_2025_01_01.txt"))
qzss_tles = load_tles(os.path.join(TLE_DIR, "qzss_2025_01_01.txt"))
print(f"GPS: {len(gps_tles):2d} sats")
print(f"Galileo: {len(gal_tles):2d} sats")
print(f"QZSS: {len(qzss_tles):2d} sats")
# tle_to_classical returns COE in ECI (TEME) frame; classical_to_cart → ECI position.
# Convert ECI → ECEF for plotting with the Earth sphere.
def tle_pos_ecef(tle, t_tai):
"""Return ECEF position [m] at given TAI epoch (ECI → ECEF conversion applied)."""
t_tdb = pnt.convert_time(t_tai, pnt.Time.TAI, pnt.Time.TDB)
rv_eci = pnt.classical_to_cart(
np.array(pnt.tle_to_classical(tle, t_tai)), pnt.GM_EARTH
)
return pnt.convert_frame(t_tdb, rv_eci, pnt.ECI, pnt.ECEF)[:3]
# Compute snapshot positions at T0 in ECEF
gps_r = np.array([tle_pos_ecef(t, T0_TAI) for t in gps_tles]) / 1e3 # km
gal_r = np.array([tle_pos_ecef(t, T0_TAI) for t in gal_tles]) / 1e3
qzss_r = np.array([tle_pos_ecef(t, T0_TAI) for t in qzss_tles]) / 1e3
R_EARTH_KM = pnt.R_EARTH / 1e3
print(f"\nMean altitude at epoch:")
for name, rr in [("GPS", gps_r), ("Galileo", gal_r), ("QZSS", qzss_r)]:
alt = np.linalg.norm(rr, axis=1) - R_EARTH_KM
print(
f" {name:<8} {np.mean(alt):.0f} km (min {np.min(alt):.0f} max {np.max(alt):.0f})"
)
GPS: 31 sats
Galileo: 31 sats
QZSS: 4 sats
Mean altitude at epoch:
GPS 20143 km (min 19887 max 20780)
Galileo 23380 km (min 23208 max 25728)
QZSS 36622 km (min 35653 max 38902)
Orbit visualization¶
Each satellite is propagated for two days from the TLE epoch. The 3-D plot shows the orbital shells, and the ground-track map shows how inclination and orbital period turn into Earth coverage.
[3]:
# ── 7-day time grid (30-min intervals) ────────────────────────────────────────
DT_TRACK = 1 * 60 # 1-min cadence [s]
T_SPAN = 2 * 24 * 3600 # 7 days [s]
t_arr = T0_TAI + np.arange(0, T_SPAN + DT_TRACK, DT_TRACK) # [N] TAI
t_tdb_arr = pnt.convert_time(t_arr, pnt.Time.TAI, pnt.Time.TDB) # [N] TDB
dyn = pnt.CartesianTwoBodyDynamics(pnt.GM_EARTH)
dyn.set_integrator(pnt.IntegratorType.RKF45)
dyn.set_integrator_params(pnt.IntegratorParams(max_iter=20, abstol=1e-3, reltol=1e-9))
def get_trajectory(tle):
"""Propagate TLE for 2 days and return (lat, lon) arrays [deg]."""
# tle_to_classical → COE in ECI; classical_to_cart → ECI state directly
coe = np.array(pnt.tle_to_classical(tle, T0_TAI))
rv0_eci = pnt.classical_to_cart(coe, pnt.GM_EARTH) # already in ECI
# propagate: t_arr[0] == T0_TAI (signature: propagate(x0, tfs))
rv_eci = dyn.propagate(rv0_eci, t_arr) # [N×6] ECI
return rv_eci
print("Computing trajectory for 2 days (1-min cadence)…")
gps_traj = np.array([get_trajectory(t) for t in gps_tles])
gal_traj = np.array([get_trajectory(t) for t in gal_tles])
qzss_traj = np.array([get_trajectory(t) for t in qzss_tles])
print("Done.")
fig = go.Figure()
pnt.plot.plot_body(fig, pnt.EARTH)
pnt.plot.plot_orbits(fig, gps_traj, t=0, color="blue")
pnt.plot.plot_orbits(fig, gal_traj, t=0, color="orange")
pnt.plot.plot_orbits(fig, qzss_traj, t=0, color="green")
pnt.plot.set_view(fig, azimuth=-35, elevation=10, zoom=2.5)
embed_plotly(fig, "ex3_gnss_constellation")
Computing trajectory for 2 days (1-min cadence)…
Done.
[doc-asset] plots/ex3_gnss_constellation.html (7971 kB) -> https://stanford-navlab.github.io/lupnt-doc-assets/plots/ex3_gnss_constellation.html
Part 2: Satellite antenna gain patterns¶
A GNSS transmitter is usually designed to illuminate Earth, not the Moon. The received power at lunar distance therefore depends strongly on off-boresight angle. If \(\theta=0\) is nadir, the antenna table gives transmit gain \(G_T(\theta,\phi)\), which feeds the link budget through
\[C/N_0 \propto \mathrm{EIRP}(\theta,\phi)-L_{fs}+G_R-10\log_{10}(kT_{sys}).\]
LuPNT’s pnt.Antenna class loads pattern tables from data/LuPNT_data/antenna/ for representative GPS, Galileo, and QZSS signals.

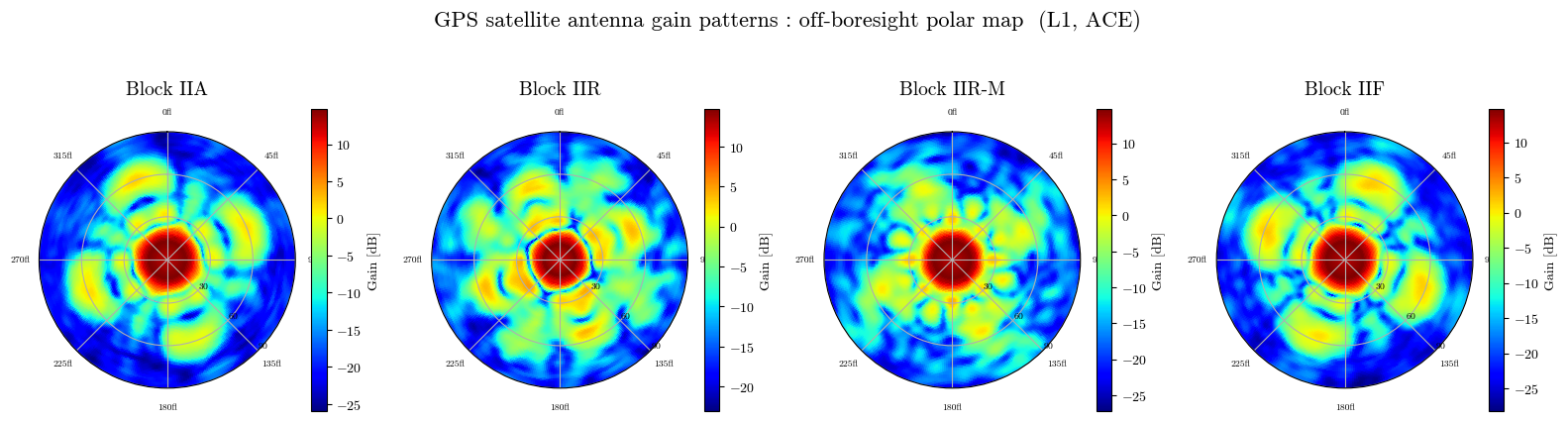

GPS block antennas: 2-D polar comparison¶
The polar plots compare block-specific GPS transmit patterns. Main-lobe behavior is near the center; sidelobes appear at larger off-boresight angles and are the important region for lunar receivers.
[4]:
def plot_antenna_2d_polar(ax, antenna, name=None, cmap="jet"):
"""
2-D polar gain map: radius = off-boresight angle (0° center → 90° edge),
azimuth = antenna azimuth angle, color = gain [dB].
"""
phi = np.array(antenna.get_phi_vector()) # (N_phi,) 0-90 deg
theta = np.array(antenna.get_theta_vector()) # (N_theta,) 0-360 deg
gain = np.array(antenna.get_gain_matrix()) # (N_phi, N_theta)
T, P = np.meshgrid(np.radians(theta), phi) # shapes (N_phi, N_theta)
mesh = ax.pcolormesh(
T,
P,
gain,
cmap=cmap,
shading="auto",
vmin=np.nanmin(gain),
vmax=np.nanmax(gain),
)
ax.set_theta_zero_location("N") # 0° azimuth at top
ax.set_theta_direction(-1) # clockwise azimuth
ax.set_rmax(90)
ax.set_rticks([30, 60, 90])
ax.set_rlabel_position(135)
ax.tick_params(labelsize=7)
ax.set_title(name or antenna.name, pad=10, fontsize=14)
return mesh
gps_blocks = {
"Block IIA": "Block-IIA_ACE",
"Block IIR": "Block-IIR_ACE",
"Block IIR-M": "Block-IIR-M_ACE",
"Block IIF": "Block-IIF_ACE",
}
fig, axes = plt.subplots(1, 4, figsize=(16, 4.5), subplot_kw=dict(projection="polar"))
meshes = []
for ax, (label, name) in zip(axes, gps_blocks.items()):
meshes.append(plot_antenna_2d_polar(ax, pnt.Antenna(name), name=label))
cbar = fig.colorbar(meshes[-1], ax=ax, shrink=0.8)
cbar.set_label("Gain [dB]", fontsize=10)
plt.suptitle(
"GPS satellite antenna gain patterns : off-boresight polar map (L1, ACE)",
y=1.02,
fontsize=16,
)
plt.tight_layout()
plt.show()
print(f'\n{"Block":<12} {"Peak gain [dB]":>15} {"At phi [deg]":>13}')
print("-" * 44)
for label, name in gps_blocks.items():
a = pnt.Antenna(name)
phi = np.array(a.get_phi_vector())
gm = np.array(a.get_gain_matrix())
g1d = gm[:, 0]
print(f"{label:<12} {np.max(g1d):>15.1f} {phi[np.argmax(g1d)]:>13.1f}")
Block Peak gain [dB] At phi [deg]
--------------------------------------------
Block IIA 14.8 12.0
Block IIR 14.7 10.0
Block IIR-M 14.8 12.0
Block IIF 14.8 12.0

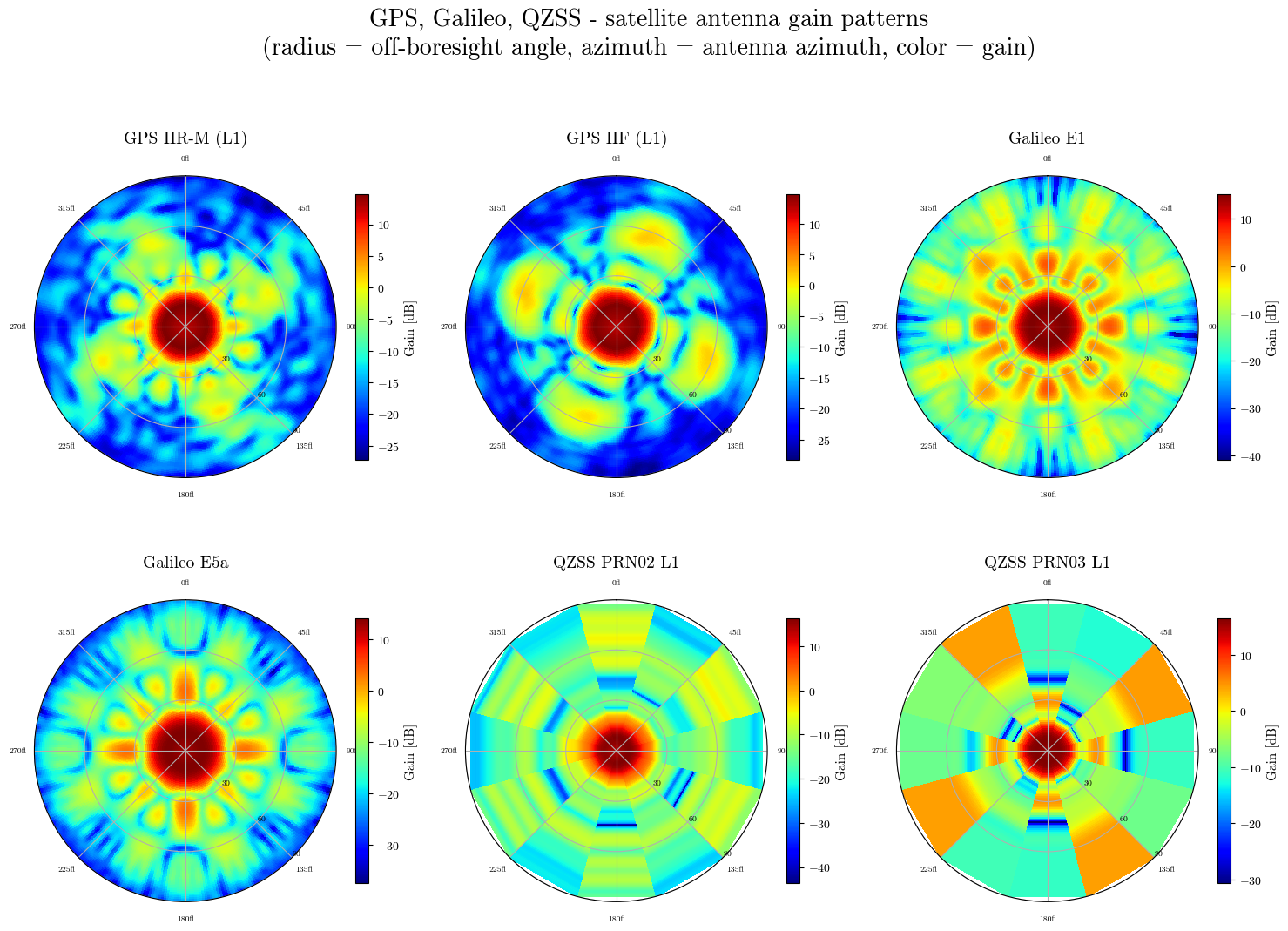

GPS, Galileo, and QZSS comparison¶
This panel puts representative transmit patterns from multiple constellations on the same scale. It is a quick way to see which signals remain useful outside the Earth-facing main beam.
[5]:
multi = [
("GPS IIR-M (L1)", "Block-IIR-M_ACE"),
("GPS IIF (L1)", "Block-IIF_ACE"),
("Galileo E1", "Galileo_E1"),
("Galileo E5a", "Galileo_E5a"),
("QZSS PRN02 L1", "QZSS_02_L1"),
("QZSS PRN03 L1", "QZSS_03_L1"),
]
fig, axes = plt.subplots(2, 3, figsize=(15, 11), subplot_kw=dict(projection="polar"))
meshes = []
for ax, (label, name) in zip(axes.flatten(), multi):
meshes.append(plot_antenna_2d_polar(ax, pnt.Antenna(name), name=label))
cbar = fig.colorbar(meshes[-1], ax=ax, shrink=0.6)
cbar.set_label("Gain [dB]", fontsize=11)
plt.suptitle(
"GPS, Galileo, QZSS - satellite antenna gain patterns\n"
"(radius = off-boresight angle, azimuth = antenna azimuth, color = gain)",
y=1.02,
fontsize=20,
)
plt.tight_layout()
plt.show()
3-D gain pattern: GPS Block IIF¶
The 3-D rendering wraps the gain table around the antenna boresight. This view helps connect a scalar off-boresight plot to the actual direction-dependent transmit pattern used in link-budget calculations.
[6]:
antenna = pnt.Antenna("Block-IIF_ACE")
fig = pnt.plot.plot_antenna_gain_pattern(antenna=antenna)
embed_plotly(fig, "ex3_broadcast_precise")
[doc-asset] plots/ex3_broadcast_precise.html (1503 kB) -> https://stanford-navlab.github.io/lupnt-doc-assets/plots/ex3_broadcast_precise.html
Part 3: Broadcast versus precise ephemeris¶
Navigation receivers normally use broadcast ephemerides because they are available in real time. Precise products are delayed, but they provide a reference for analysis.
Product |
Typical latency |
Orbit accuracy |
Clock accuracy |
|---|---|---|---|
Broadcast RINEX |
real time |
about 1 m |
several ns |
IGS/COD MGEX SP3 final |
about 2 weeks |
cm level |
sub-ns |
To compare them consistently, we also correct for the antenna phase-center offset (PCO). SP3 products are commonly referenced to the satellite center of mass, while broadcast models are used at the antenna phase center:
\[\mathbf r_{APC}=\mathbf r_{CoM}+R_{NEU\to ECEF}\,\mathbf{PCO}_{NEU}.\]
Differences are decomposed in the RTN frame so radial, along-track, and cross-track behavior can be interpreted separately.
Download and load SP3 and BRDC files¶
This cell downloads the precise (SP3) and broadcast (BRDC) products for the selected days from NASA CDDIS and parses them with the C++ loaders. Downloaded files are cached under output/gnss_files/, so re-runs need no network access.
[7]:
from datetime import datetime, timedelta
# ── Comparison window ─────────────────────────────────────────────────────────
# ex3 downloads the daily COD MGEX final SP3 + multi-GNSS BRDC broadcast products
# straight from NASA CDDIS using LuPNT's C++ loaders -- this doubles as a check
# that your Earthdata Login is configured. Downloads need credentials in
# ~/.netrc (machine urs.earthdata.nasa.gov) or the EARTHDATA_USERNAME /
# EARTHDATA_PASSWORD environment variables; see
# https://cddis.nasa.gov/Data_and_Derived_Products/CDDIS_Archive_Access.html
# Files are cached under output/gnss_files/{sp3,brdc}, so re-runs skip the fetch.
START_DT = datetime(2026, 1, 1) # UTC start date
SIM_DAYS = 3
def _day_epoch_tai(dt):
"""Mid-day TAI epoch for a calendar day (used to pick that day's product)."""
t_tdb = pnt.gregorian_to_time(dt.year, dt.month, dt.day, 12, 0, 0)
return pnt.convert_time(t_tdb, pnt.Time.TDB, pnt.Time.TAI)
# One daily product per day spanning the window, plus a one-day lead-in margin so the interpolators have data at the endpoints.
window_days = [START_DT + timedelta(days=d) for d in range(-1, SIM_DAYS + 1)]
# ── SP3 precise orbits (COD MGEX final, 5-min) + BRDC broadcast ephemeris ─────
print(f"Downloading SP3 + BRDC from CDDIS for {SIM_DAYS}-day window starting {START_DT.date()}…")
sp3_paths, brdc_paths = [], []
for dt in window_days:
te = _day_epoch_tai(dt)
sp3_paths.append(pnt.Sp3Loader.download_file_for_epoch(te, pnt.Time.TAI))
brdc_paths.append(pnt.RinexNavLoader.download_file_for_epoch(te, pnt.Time.TAI))
# LuPNT C++ Sp3Loader / RinexNavLoader parse the downloaded files.
sp3 = pnt.Sp3Loader(sp3_paths)
brdc = pnt.RinexNavLoader(brdc_paths)
sats_sp3 = sp3.get_satellites()
sats_brdc = brdc.get_satellites()
print(f" SP3 satellites: {len(sats_sp3)} | BRDC satellites: {len(sats_brdc)}")
gps_sp3 = sorted(int(s[1:]) for s in sats_sp3 if s.startswith("G"))
gal_sp3 = sorted(int(s[1:]) for s in sats_sp3 if s.startswith("E"))
gps_brdc = sorted(int(s[1:]) for s in sats_brdc if s.startswith("G"))
gal_brdc = sorted(int(s[1:]) for s in sats_brdc if s.startswith("E"))
print(f" GPS PRNs in SP3: {gps_sp3}")
print(f" Galileo PRNs in SP3: {gal_sp3}")
print(f" GPS PRNs in BRDC: {gps_brdc}")
print(f" Galileo PRNs in BRDC: {gal_brdc}")
# ── Select up to 5 common GPS / Galileo PRNs ─────────────────────────────────
COMMON_PRNS_GPS = sorted(set(gps_sp3) & set(gps_brdc))[:5]
COMMON_PRNS_GAL = sorted(set(gal_sp3) & set(gal_brdc))[:5]
print(f'\nSelected GPS PRNs for comparison: {[f"G{p:02d}" for p in COMMON_PRNS_GPS]}')
print(f'Selected Galileo PRNs for comparison: {[f"E{p:02d}" for p in COMMON_PRNS_GAL]}')
Downloading SP3 + BRDC from CDDIS for 3-day window starting 2026-01-01…
SP3 satellites: 123 | BRDC satellites: 115
GPS PRNs in SP3: [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32]
Galileo PRNs in SP3: [2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 18, 19, 21, 23, 25, 26, 27, 29, 30, 31, 33, 34, 36]
GPS PRNs in BRDC: [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32]
Galileo PRNs in BRDC: [2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 18, 19, 21, 23, 25, 26, 27, 29, 30, 31, 33, 34, 36]
Selected GPS PRNs for comparison: ['G01', 'G02', 'G03', 'G04', 'G05']
Selected Galileo PRNs for comparison: ['E02', 'E03', 'E04', 'E05', 'E06']
[8]:
# ── ANTEX PCO (LuPNT C++ AntexLoader) ─────────────────────────────────────────
antex = pnt.AntexLoader(os.path.join(DATA_DIR, "gnss/igs20.atx"))
# The C++ loader is time-dependent (ANTEX validity blocks), so PCOs are queried at
# a TAI epoch -- use mid-day of the window's start date.
T_PCO_TDB = pnt.gregorian_to_time(START_DT.year, START_DT.month, START_DT.day, 12, 0, 0)
T_PCO_TAI = pnt.convert_time(T_PCO_TDB, pnt.Time.TDB, pnt.Time.TAI)
print("GPS L1 phase-centre offsets (IGS20 ANTEX):")
print(f'{"PRN":>5} {"N [mm]":>8} {"E [mm]":>8} {"U [mm]":>8}')
print("-" * 36)
for prn in COMMON_PRNS_GPS:
pco = np.asarray(antex.get_pco(pnt.GnssConst.GPS, prn, pnt.GnssFreq.L1, T_PCO_TAI))
print(f"G{prn:02d} {pco[0]*1e3:>8.1f} {pco[1]*1e3:>8.1f} {pco[2]*1e3:>8.1f}")
print("\nGalileo E1 phase-centre offsets (IGS20 ANTEX):")
print(f'{"PRN":>5} {"N [mm]":>8} {"E [mm]":>8} {"U [mm]":>8}')
print("-" * 36)
for prn in COMMON_PRNS_GAL:
pco = np.asarray(antex.get_pco(pnt.GnssConst.GALILEO, prn, pnt.GnssFreq.E1, T_PCO_TAI))
print(f"E{prn:02d} {pco[0]*1e3:>8.1f} {pco[1]*1e3:>8.1f} {pco[2]*1e3:>8.1f}")
GPS L1 phase-centre offsets (IGS20 ANTEX):
PRN N [mm] E [mm] U [mm]
------------------------------------
G01 -65.9 20.4 1185.8
G02 1.3 -1.1 681.9
G03 394.0 0.0 1482.3
G04 -59.9 17.5 1179.8
G05 -3.3 -0.3 742.6
Galileo E1 phase-centre offsets (IGS20 ANTEX):
PRN N [mm] E [mm] U [mm]
------------------------------------
E02 121.3 -9.1 881.8
E03 116.0 -9.2 892.8
E04 122.4 -9.7 890.5
E05 121.4 -9.4 912.9
E06 118.7 -9.5 897.6
Query SP3 and BRDC positions¶
Positions and clocks are evaluated at 15-minute intervals. SP3 states come from interpolation over the precise product; BRDC states come from the nearest navigation message and its Keplerian-plus-harmonic broadcast model.
[9]:
# ── Query epochs: 15-min cadence over the full window ────────────────────────
T_START_TDB = pnt.gregorian_to_time(
START_DT.year, START_DT.month, START_DT.day, 0, 0, 0
)
T_START_TAI = pnt.convert_time(T_START_TDB, pnt.Time.TDB, pnt.Time.TAI)
DT_Q = 15 * 60 # 15-min cadence [s]
N_Q = SIM_DAYS * 24 * 4 + 1 # e.g. 3×96 + 1 = 289 epochs
t_q_tai = T_START_TAI + np.arange(N_Q) * DT_Q
t_q_tdb = pnt.convert_time(t_q_tai, pnt.Time.TAI, pnt.Time.TDB)
t_hours = np.arange(N_Q) * DT_Q / 3600.0
print(f"Query grid: {N_Q} epochs | span: {t_hours[-1]:.1f} h ({SIM_DAYS} days)")
def query_posvelclock_eci(loader, sat_id, t_tai_arr, t_tdb_arr):
"""Evaluate a C++ SP3/RINEX loader over a time grid.
The C++ loaders are scalar-in-time and return ECEF states + a scalar clock, so
we loop the query and rotate ECEF → ECI once (vectorised). Epochs the loader
can't cover (satellite absent / out of span) are returned as NaN."""
n = len(t_tai_arr)
rv_ecef = np.full((n, 6), np.nan)
clk = np.full(n, np.nan)
for k in range(n):
try:
rv, c = loader.get_pos_vel_clock(sat_id, float(t_tai_arr[k]))
rv_ecef[k] = np.asarray(rv, dtype=float)
clk[k] = float(c)
except RuntimeError:
pass # leave NaN for uncovered epochs
rv_eci = np.asarray(pnt.convert_frame(t_tdb_arr, rv_ecef, pnt.ECEF, pnt.ECI))
return rv_eci, clk
results = {}
for prn in COMMON_PRNS_GPS:
tag = f"G{prn:02d}"
print(f"Processing {tag}")
# SP3: centre-of-mass in ECI [m, m/s] + clock [s]
rv_sp3, clk_sp3 = query_posvelclock_eci(sp3, tag, t_q_tai, t_q_tdb)
# BRDC: antenna phase-centre in ECI [m, m/s] + clock [s]
rv_brdc, clk_brdc = query_posvelclock_eci(brdc, tag, t_q_tai, t_q_tdb)
results[tag] = dict(rv_sp3=rv_sp3, rv_brdc=rv_brdc, clk_sp3=clk_sp3, clk_brdc=clk_brdc)
for prn in COMMON_PRNS_GAL:
tag = f"E{prn:02d}"
print(f"Processing {tag}")
rv_sp3, clk_sp3 = query_posvelclock_eci(sp3, tag, t_q_tai, t_q_tdb)
rv_brdc, clk_brdc = query_posvelclock_eci(brdc, tag, t_q_tai, t_q_tdb)
results[tag] = dict(rv_sp3=rv_sp3, rv_brdc=rv_brdc, clk_sp3=clk_sp3, clk_brdc=clk_brdc)
print(f"\nPosition arrays shape: {rv_sp3.shape} (N_epochs x 6)")
Query grid: 289 epochs | span: 72.0 h (3 days)
Processing G01
Processing G02
Processing G03
Processing G04
Processing G05
Processing E02
Processing E03
Processing E04
Processing E05
Processing E06
Position arrays shape: (289, 6) (N_epochs x 6)
Apply PCO corrections and rotate into RTN¶
AntexLoader.apply_pco_correction_ecef (C++) builds the satellite body-frame rotation from the nadir direction and the Sun direction and applies the NEU phase-centre offset in ECEF. After applying PCO, we compare broadcast and precise states in the local RTN frame of the broadcast orbit.
[10]:
def apply_pco_correction(tag, rv_sp3_eci, t_tai_arr, t_tdb_arr):
"""
Shift SP3 CoM → APC positions using IGS20 ANTEX PCOs (GPS L1 / Galileo E1).
Returns corrected APC positions in ECI [m], shape (N, 3).
Uses the C++ AntexLoader: get_pco() returns the NEU offset [m] and
apply_pco_correction_ecef() rotates it into ECEF (satellite yaw-steering
attitude from the Sun direction) and adds it to the CoM position.
"""
prn = int(tag[1:])
const = pnt.GnssConst.GPS if tag[0] == "G" else pnt.GnssConst.GALILEO
freq = pnt.GnssFreq.L1 if tag[0] == "G" else pnt.GnssFreq.E1
# 1. SP3 ECI → ECEF
rv_sp3_ecef = np.asarray(pnt.convert_frame(t_tdb_arr, rv_sp3_eci, pnt.ECI, pnt.ECEF))
r_com_ecef = rv_sp3_ecef[:, :3]
r_apc_ecef = np.empty_like(r_com_ecef)
for k in range(len(t_tai_arr)):
t_k = float(t_tai_arr[k])
# 2. NEU phase-centre offset [m] at epoch k
pco_neu = np.asarray(antex.get_pco(const, prn, freq, t_k))
# 3. CoM + PCO in ECEF (rotation applied inside the C++ helper)
r_apc_ecef[k] = np.asarray(
pnt.AntexLoader.apply_pco_correction_ecef(t_k, r_com_ecef[k], pco_neu)
)
# 4. APC ECEF → ECI
rv_apc_ecef = np.hstack([r_apc_ecef, rv_sp3_ecef[:, 3:]])
rv_apc_eci = np.asarray(pnt.convert_frame(t_tdb_arr, rv_apc_ecef, pnt.ECEF, pnt.ECI))
return rv_apc_eci[:, :3]
def rtn_decompose(r_ref, v_ref, dr):
"""
Decompose position difference dr (N x 3 ECI) into RTN components.
Returns (R, T, N) each of shape (N,) in metres.
"""
r_hat = r_ref / np.linalg.norm(r_ref, axis=1, keepdims=True)
h = np.cross(r_ref, v_ref)
n_hat = h / np.linalg.norm(h, axis=1, keepdims=True)
t_hat = np.cross(n_hat, r_hat)
R = (dr * r_hat).sum(axis=1)
T = (dr * t_hat).sum(axis=1)
N = (dr * n_hat).sum(axis=1)
return R, T, N

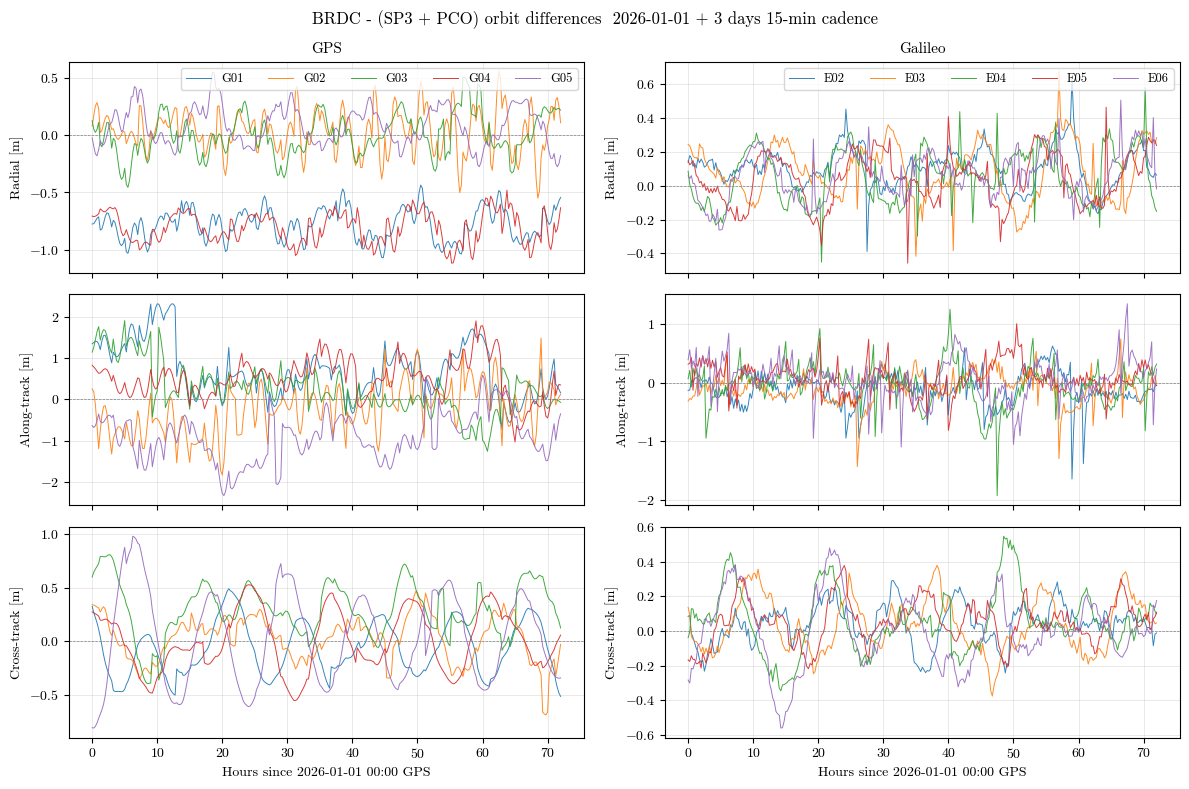

# ── Compute and plot RTN differences ─────────────────────────────────────────
print("Applying PCO corrections…")
rtn_all = {}
COLORS = ["tab:blue", "tab:orange", "tab:green", "tab:red", "tab:purple"]
END_DT = START_DT.strftime("%Y-%m-%d")
days_label = f'{START_DT.strftime("%Y-%m-%d")} + {SIM_DAYS} days'
fig, axes = plt.subplots(3, 2, figsize=(12, 8), sharex=True)
fig.suptitle(
f"BRDC - (SP3 + PCO) orbit differences {days_label} 15-min cadence", fontsize=12
)
for i, (tag, d) in enumerate(results.items()):
if tag.startswith("G"):
axes_tag = axes[:, 0] # GPS in left column
else:
axes_tag = axes[:, 1] # Galileo in right column
clr = COLORS[i % len(COLORS)]
print(f" {tag}…", end=" ", flush=True)
r_sp3_apc = apply_pco_correction(tag, d["rv_sp3"], t_q_tai, t_q_tdb)
r_brdc = d["rv_brdc"][:, :3]
v_brdc = d["rv_brdc"][:, 3:]
dr = r_brdc - r_sp3_apc
R, T, N = rtn_decompose(r_brdc, v_brdc, dr)
rtn_all[tag] = (R, T, N)
print(f"R std={np.std(R):.2f} m T std={np.std(T):.2f} m N std={np.std(N):.2f} m")
for ax, comp in zip(axes_tag, [R, T, N]):
ax.plot(
t_hours,
comp,
lw=0.7,
color=clr,
label=tag if ax is axes[0, 0] or ax is axes[0, 1] else None,
alpha=0.9,
)
for col in range(2):
for ax, ylabel in zip(
axes[:, col], ["Radial [m]", "Along-track [m]", "Cross-track [m]"]
):
ax.set_ylabel(ylabel)
ax.axhline(0, color="gray", lw=0.5, ls="--")
ax.grid(True, lw=0.4, alpha=0.5)
if col == 0:
axes[0, col].set_title("GPS", fontsize=11)
else:
axes[0, col].set_title("Galileo", fontsize=11)
axes[0, col].legend(loc="upper right", fontsize=9, ncol=len(results))
axes[-1, col].set_xlabel(f'Hours since {START_DT.strftime("%Y-%m-%d")} 00:00 GPS')
plt.tight_layout()
plt.show()
Applying PCO corrections…
G01… R std=0.14 m T std=0.65 m N std=0.24 m
G02… R std=0.19 m T std=0.59 m N std=0.21 m
G03… R std=0.18 m T std=0.59 m N std=0.25 m
G04… R std=0.14 m T std=0.48 m N std=0.27 m
G05… R std=0.16 m T std=0.58 m N std=0.42 m
E02… R std=0.12 m T std=0.29 m N std=0.11 m
E03… R std=0.16 m T std=0.26 m N std=0.15 m
E04… R std=0.16 m T std=0.35 m N std=0.18 m
E05… R std=0.15 m T std=0.26 m N std=0.12 m
E06… R std=0.14 m T std=0.35 m N std=0.20 m

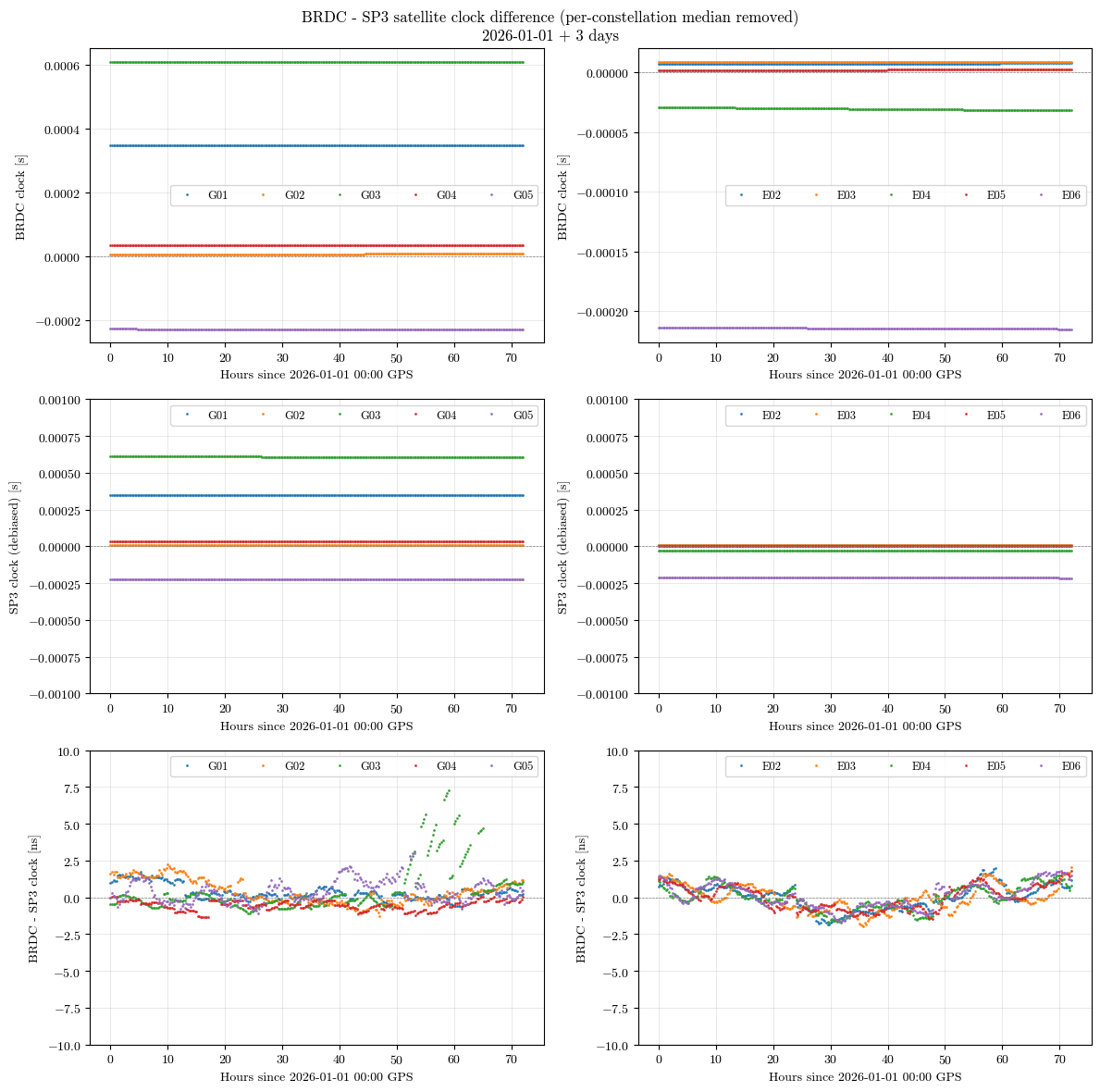

Satellite clock comparison¶
The broadcast clock polynomial is compared with the SP3 clock estimate. The residual mainly reflects broadcast clock prediction error, which maps directly into pseudorange through \(c\,\Delta t\).
Before comparing, we remove a systematic per-constellation bias. The precise (SP3) and broadcast (BRDC) products are referenced to slightly different time scales, so their satellite-clock estimates differ by an offset that is common to every satellite in a constellation. Following the CNAV broadcast-ephemeris performance evaluation (Montenbruck & Steigenberger, J. Navigation, 2018), we subtract this common offset from the precise clock used as truth:
\[\delta t^{\mathrm{pr}}_k \;\leftarrow\; \delta t^{\mathrm{pr}}_k - \operatorname{median}\!\left(\delta t^{\mathrm{pr}} - \delta t^{\mathrm{br}}\right),\]
where the median is taken over every satellite and epoch of the constellation. This isolates the broadcast clock prediction error from the constant inter-product time-reference offset, which a real receiver would otherwise absorb into its own clock-bias estimate.
[11]:
# ── Remove the systematic broadcast-vs-precise clock bias per constellation ────
# Keep a pristine copy of the precise clock so re-running this cell is idempotent.
for d in results.values():
d.setdefault("clk_sp3_raw", d["clk_sp3"].copy())
const_of = lambda tag: tag[0] # "G" = GPS, "E" = Galileo, "C" = BeiDou, "J" = QZSS
constellations = sorted({const_of(tag) for tag in results})
CONST_NAME = {"G": "GPS", "E": "Galileo", "C": "BeiDou", "J": "QZSS", "R": "GLONASS"}
# median(precise - broadcast) over every satellite AND epoch of the constellation
clock_bias_s = {}
for c in constellations:
pooled = np.concatenate(
[results[tag]["clk_sp3_raw"] - results[tag]["clk_brdc"]
for tag in results if const_of(tag) == c]
)
clock_bias_s[c] = float(np.nanmedian(pooled))
print("Per-constellation systematic clock bias removed from the SP3 truth:")
print(f'{"Constellation":<14}{"median(SP3 - BRDC) [ns]":>24}{"PRNs x epochs":>16}')
print("-" * 54)
for c in constellations:
n = sum(const_of(t) == c for t in results)
print(f"{CONST_NAME.get(c, c):<14}{clock_bias_s[c]*1e9:>24.3f}{f'{n} x {N_Q}':>16}")
# Apply the correction: dt_sp3 <- dt_sp3_raw - median(dt_sp3 - dt_brdc)
for tag, d in results.items():
d["clk_sp3"] = d["clk_sp3_raw"] - clock_bias_s[const_of(tag)]
# QZSS additionally needs a per-satellite radial-orbit debiasing (removes the constant
# radial offset between precise and broadcast); it is not applied here because this
# comparison uses only GPS and Galileo (no QZSS PRNs are present in the SP3/BRDC pair).
if any(const_of(t) == "J" for t in results):
print("\nNote: QZSS present -- apply a per-satellite radial-orbit debiasing as well.")
Per-constellation systematic clock bias removed from the SP3 truth:
Constellation median(SP3 - BRDC) [ns] PRNs x epochs
------------------------------------------------------
Galileo -1.005 5 x 289
GPS 0.789 5 x 289
[12]:
fig, ax = plt.subplots(3, 2, figsize=(12, 12))
fig.suptitle(
f"BRDC - SP3 satellite clock difference (per-constellation median removed)\n{days_label}",
fontsize=12,
)
print(f'\n{"PRN":>5} {"mean [ns]":>10} {"std [ns]":>10} {"peak-to-peak [ns]":>18}')
print("-" * 48)
for row in range(3):
for col in range(2):
if col == 0:
results_items = [
(tag, d) for tag, d in results.items() if tag.startswith("G")
]
else:
results_items = [
(tag, d) for tag, d in results.items() if tag.startswith("E")
]
for i, (tag, d) in enumerate(results_items):
if row == 0:
dc_ns = d["clk_brdc"]
ylabel = "BRDC clock [s]"
elif row == 1:
dc_ns = d["clk_sp3"]
ylabel = "SP3 clock (debiased) [s]"
ax[row, col].set_ylim(-1e-3, 1e-3)
else:
dc_ns = (d["clk_brdc"] - d["clk_sp3"]) * 1e9
ylabel = "BRDC - SP3 clock [ns]"
ax[row, col].set_ylim(-10, 10)
ax[row, col].plot(
t_hours,
dc_ns,
"o",
lw=0.7,
color=COLORS[i % len(COLORS)],
markersize=1,
label=tag,
alpha=0.9,
)
print(
f"{tag:>5} {np.mean(dc_ns):>10.2f} {np.std(dc_ns):>10.2f}"
f" {np.ptp(dc_ns):>18.2f}"
)
ax[row, col].set_xlabel(
f'Hours since {START_DT.strftime("%Y-%m-%d")} 00:00 GPS'
)
ax[row, col].set_ylabel(ylabel)
ax[row, col].axhline(0, color="gray", lw=0.5, ls="--")
ax[row, col].legend(fontsize=9, ncol=len(results))
ax[row, col].grid(True, lw=0.4, alpha=0.5)
plt.tight_layout()
plt.show()
# ── Summary table ─────────────────────────────────────────────────────────────
print("\n── Orbit & clock accuracy summary ───────────────────────────────────")
print(
f'{"PRN":>5} {"R std [m]":>10} {"T std [m]":>10} {"N std [m]":>10} {"Clk std [ns]":>13}'
)
print("-" * 58)
for tag in results:
R, T, N = rtn_all[tag]
dc_ns = (results[tag]["clk_brdc"] - results[tag]["clk_sp3"]) * 1e9
print(
f"{tag:>5} {np.std(R):>10.2f} {np.std(T):>10.2f} {np.std(N):>10.2f}"
f" {np.std(dc_ns):>13.2f}"
)
PRN mean [ns] std [ns] peak-to-peak [ns]
------------------------------------------------
G01 0.00 0.00 0.00
G02 0.00 0.00 0.00
G03 0.00 0.00 0.00
G04 0.00 0.00 0.00
G05 -0.00 0.00 0.00
E02 0.00 0.00 0.00
E03 0.00 0.00 0.00
E04 -0.00 0.00 0.00
E05 0.00 0.00 0.00
E06 -0.00 0.00 0.00
G01 0.00 0.00 0.00
G02 0.00 0.00 0.00
G03 0.00 0.00 0.00
G04 0.00 0.00 0.00
G05 -0.00 0.00 0.00
E02 0.00 0.00 0.00
E03 0.00 0.00 0.00
E04 -0.00 0.00 0.00
E05 0.00 0.00 0.00
E06 -0.00 0.00 0.00
G01 0.36 0.51 2.37
G02 0.40 0.80 3.52
G03 0.52 1.63 8.38
G04 -0.53 0.32 1.47
G05 0.39 0.76 4.11
E02 0.05 0.86 3.85
E03 -0.01 0.86 4.02
E04 0.02 0.83 3.19
E05 0.03 0.81 3.26
E06 0.12 0.83 3.47
── Orbit & clock accuracy summary ───────────────────────────────────
PRN R std [m] T std [m] N std [m] Clk std [ns]
----------------------------------------------------------
G01 0.14 0.65 0.24 0.51
G02 0.19 0.59 0.21 0.80
G03 0.18 0.59 0.25 1.63
G04 0.14 0.48 0.27 0.32
G05 0.16 0.58 0.42 0.76
E02 0.12 0.29 0.11 0.86
E03 0.16 0.26 0.15 0.86
E04 0.16 0.35 0.18 0.83
E05 0.15 0.26 0.12 0.81
E06 0.14 0.35 0.20 0.83

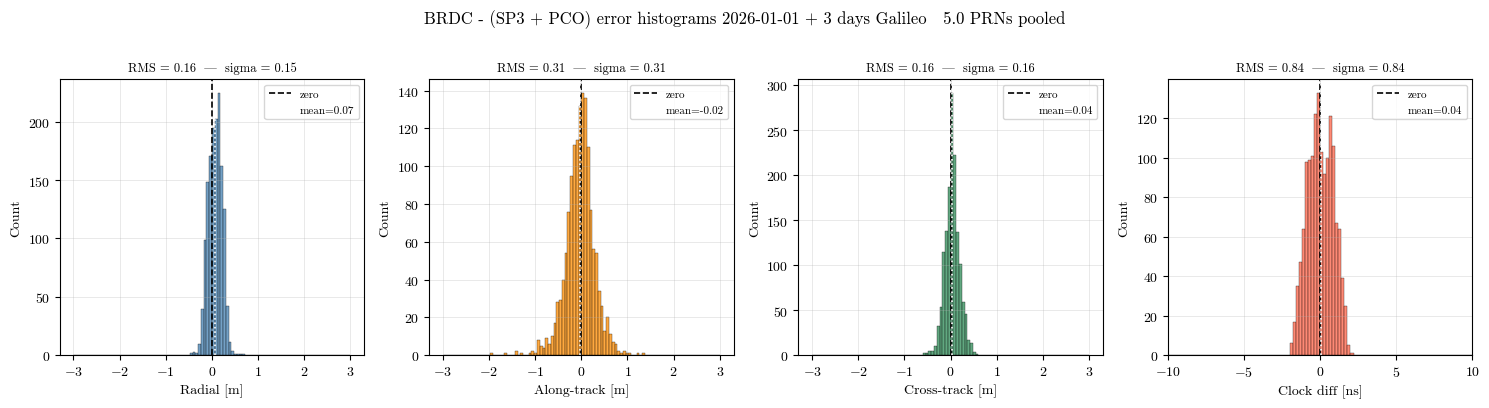

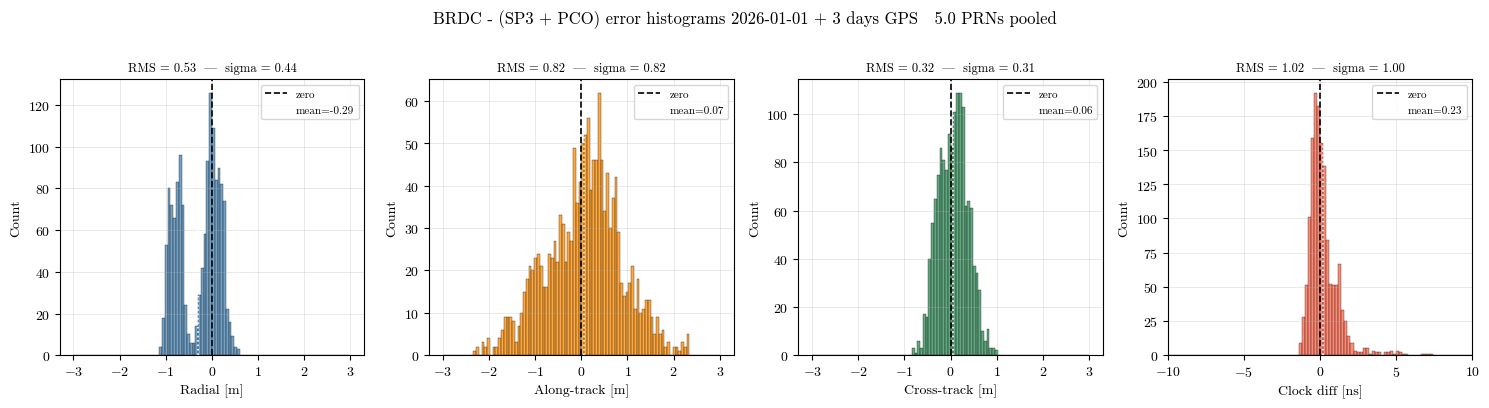

Error histograms¶
The histograms pool orbit and clock differences across the selected PRNs and epochs. They provide a compact empirical summary of the broadcast product errors that later measurement simulations must tolerate.
[13]:
# Pool errors across all selected PRNs for a global histogram
all_R_gps, all_T_gps, all_N_gps, all_dc_ns_gps = [], [], [], []
all_R_gal, all_T_gal, all_N_gal, all_dc_ns_gal = [], [], [], []
for tag, d in results.items():
R, T, N = rtn_all[tag]
if tag.startswith("G"):
all_R_gps.append(R)
all_T_gps.append(T)
all_N_gps.append(N)
all_dc_ns_gps.append((d["clk_brdc"] - d["clk_sp3"]) * 1e9)
else:
all_R_gal.append(R)
all_T_gal.append(T)
all_N_gal.append(N)
all_dc_ns_gal.append((d["clk_brdc"] - d["clk_sp3"]) * 1e9)
pool_R_gps = np.concatenate(all_R_gps)
pool_T_gps = np.concatenate(all_T_gps)
pool_N_gps = np.concatenate(all_N_gps)
pool_clk_gps = np.concatenate(all_dc_ns_gps)
pool_R_gal = np.concatenate(all_R_gal)
pool_T_gal = np.concatenate(all_T_gal)
pool_N_gal = np.concatenate(all_N_gal)
pool_clk_gal = np.concatenate(all_dc_ns_gal)
components_gps = [
("Radial [m]", pool_R_gps, "steelblue"),
("Along-track [m]", pool_T_gps, "darkorange"),
("Cross-track [m]", pool_N_gps, "seagreen"),
("Clock diff [ns]", pool_clk_gps, "tomato"),
]
components_gal = [
("Radial [m]", pool_R_gal, "steelblue"),
("Along-track [m]", pool_T_gal, "darkorange"),
("Cross-track [m]", pool_N_gal, "seagreen"),
("Clock diff [ns]", pool_clk_gal, "tomato"),
]
bins_pos = np.linspace(-3, 3, 101)
bins_clk = np.linspace(-10, 10, 101)
for row in range(2):
fig, axes = plt.subplots(1, 4, figsize=(15, 4))
constellation = "GPS" if row == 0 else "Galileo"
fig.suptitle(
f"BRDC - (SP3 + PCO) error histograms {days_label} {constellation} "
f" {len(results)/2} PRNs pooled",
fontsize=12,
y=1.01,
)
for ax, (xlabel, data, color) in zip(
axes, components_gps if row == 0 else components_gal
):
rms = np.sqrt(np.mean(data**2))
std = np.std(data)
mean = np.mean(data)
ax.hist(
data,
bins=bins_pos if xlabel != "Clock diff [ns]" else bins_clk,
color=color,
alpha=0.75,
edgecolor="k",
lw=0.3,
)
ax.axvline(0, color="black", lw=1.2, ls="--", label="zero")
ax.axvline(mean, color="white", lw=1.2, ls=":", label=f"mean={mean:.2f}")
ax.set_xlabel(xlabel, fontsize=10)
ax.set_ylabel("Count", fontsize=10)
ax.set_title(f"RMS = {rms:.2f} | sigma = {std:.2f}", fontsize=9)
ax.legend(fontsize=8, loc="upper right")
ax.grid(True, lw=0.4, alpha=0.5)
if xlabel == "Clock diff [ns]":
ax.set_xlim(-10, 10)
plt.tight_layout()
plt.show()
# Numeric summary
print("[GPS]")
print(f'\n{"Component":<20} {"Mean":>10} {"Std":>10} {"RMS":>10} {"95th pct":>10}')
print("-" * 66)
labels_units = ["Radial [m]", "Along-track [m]", "Cross-track [m]", "Clock [ns]"]
for lbl, data in zip(labels_units, [pool_R_gps, pool_T_gps, pool_N_gps, pool_clk_gps]):
print(
f"{lbl:<20} {np.mean(data):>10.3f} {np.std(data):>10.3f}"
f" {np.sqrt(np.mean(data**2)):>10.3f} {np.percentile(np.abs(data), 95):>10.3f}"
)
print("\n[Galileo]")
print(f'\n{"Component":<20} {"Mean":>10} {"Std":>10} {"RMS":>10} {"95th pct":>10}')
print("-" * 66)
for lbl, data in zip(labels_units, [pool_R_gal, pool_T_gal, pool_N_gal, pool_clk_gal]):
print(
f"{lbl:<20} {np.mean(data):>10.3f} {np.std(data):>10.3f}"
f" {np.sqrt(np.mean(data**2)):>10.3f} {np.percentile(np.abs(data), 95):>10.3f}"
)
[GPS]
Component Mean Std RMS 95th pct
------------------------------------------------------------------
Radial [m] -0.293 0.441 0.529 0.962
Along-track [m] 0.067 0.816 0.819 1.624
Cross-track [m] 0.060 0.315 0.321 0.602
Clock [ns] 0.227 0.998 1.023 1.747
[Galileo]
Component Mean Std RMS 95th pct
------------------------------------------------------------------
Radial [m] 0.069 0.147 0.163 0.296
Along-track [m] -0.024 0.314 0.314 0.624
Cross-track [m] 0.037 0.159 0.163 0.333
Clock [ns] 0.039 0.839 0.840 1.542
Satellite attitude: nominal vs. dedicated yaw steering¶
GNSS satellites steer their yaw (rotation about the nadir axis) so the solar panels track the Sun. LuPNT implements both the standard nominal law and block-specific dedicated eclipse/noon-turn laws (Cheng et al., 2025; Montenbruck et al., 2026). Reusing the SP3 ECI states and the Sun ephemeris, we turn each law’s yaw angle into a body-to-ECI triad (GnssAttitude.compute_from_yaw_angle) and read off the body-frame Euler angles for a representative GPS and Galileo satellite.
The dedicated law only departs from the nominal one during a yaw maneuver — near orbit noon/midnight at low Sun elevation (small |β|), where the nominal yaw rate would exceed the spacecraft’s hardware limit. Away from that (which is almost the whole year for any given satellite — |β| ≳ 5.8° for GPS III), the rate-limited law reduces exactly to nominal, so the two curves below coincide. That flat difference is the expected result for a satellite that is not currently in its
eclipse season. The next cell confirms this from the satellite’s own β, then constructs a synthetic low-β noon/midnight turn to show how the laws actually differ — and how they differ between GPS blocks (IIR/IIR-M at 0.20°/s, IIF at 0.11°/s, and the smoothly rate-limited III).
[14]:

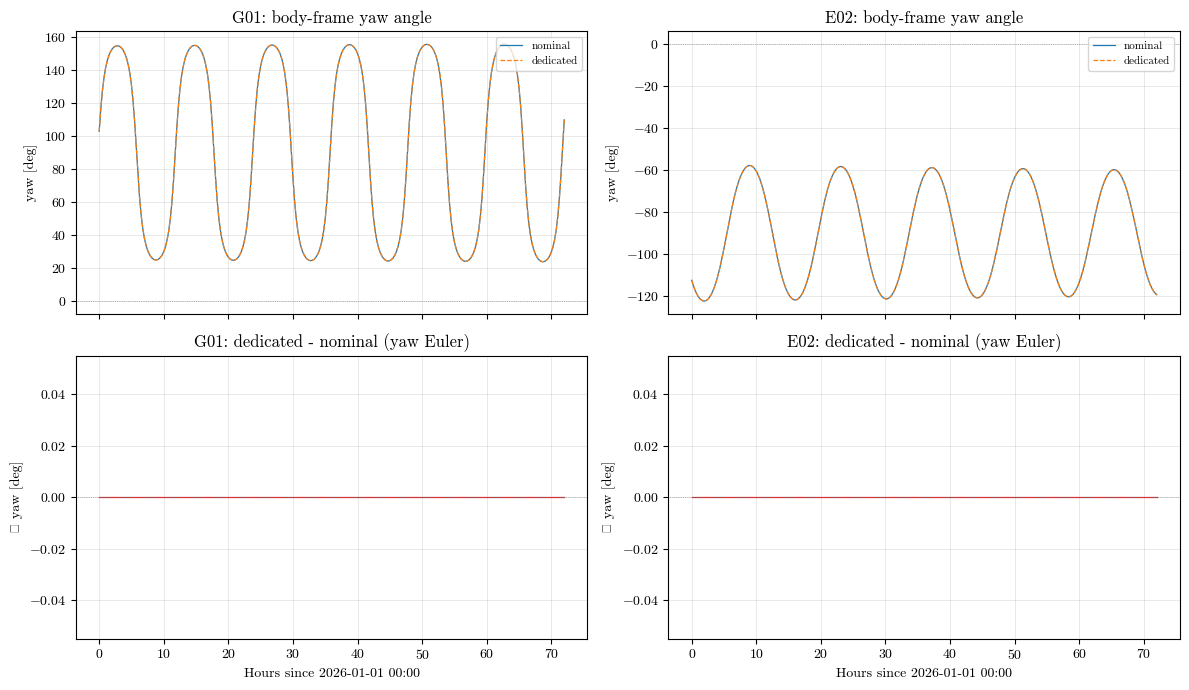

# ── Body-frame attitude: nominal vs dedicated yaw steering ────────────────────
def _sun_eci(t_tdb_arr):
return np.array([np.asarray(pnt.get_body_pos_vel(float(t), pnt.BodyId.SUN,
pnt.BodyId.EARTH, pnt.ECI))[:3] for t in t_tdb_arr])
def attitude_curves(rv_eci, r_sun, dedicated_law):
r, v = rv_eci[:, :3], rv_eci[:, 3:]
n = len(r)
yaw = np.zeros((n, 2)) # [nominal, dedicated] (rad)
rpy_nom = np.zeros((n, 3)) # roll/pitch/yaw Euler of the body triad (deg)
rpy_ded = np.zeros((n, 3))
for k in range(n):
if not np.all(np.isfinite(rv_eci[k])):
yaw[k] = np.nan; rpy_nom[k] = np.nan; rpy_ded[k] = np.nan; continue
beta = float(pnt.GnssYawSteering.beta_angle(r[k], v[k], r_sun[k]))
mu = float(pnt.GnssYawSteering.orbit_angle(r[k], v[k], r_sun[k]))
phi_n = float(pnt.GnssYawSteering.nominal_yaw_angle(beta, mu))
phi_d = float(dedicated_law(beta, mu, phi_n))
yaw[k] = [phi_n, phi_d]
Rn = np.column_stack([np.asarray(a) for a in
pnt.GnssAttitude.compute_from_yaw_angle(r[k], v[k], phi_n)])
Rd = np.column_stack([np.asarray(a) for a in
pnt.GnssAttitude.compute_from_yaw_angle(r[k], v[k], phi_d)])
rpy_nom[k] = np.degrees(np.asarray(pnt.rot_to_roll_pitch_yaw(Rn)))
rpy_ded[k] = np.degrees(np.asarray(pnt.rot_to_roll_pitch_yaw(Rd)))
return yaw, rpy_nom, rpy_ded
r_sun_eci = _sun_eci(t_q_tdb)
gps_tag = f"G{COMMON_PRNS_GPS[0]:02d}"
gal_tag = f"E{COMMON_PRNS_GAL[0]:02d}"
# GPS: Block-III eclipse law; Galileo: IOV eclipse law (needs the noon-referenced orbit angle).
gps = attitude_curves(results[gps_tag]['rv_sp3'], r_sun_eci,
lambda b, m, p: pnt.GnssYawSteering.gps3_eclipse_yaw_angle(b, m, p))
gal = attitude_curves(results[gal_tag]['rv_sp3'], r_sun_eci,
lambda b, m, p: pnt.GnssYawSteering.galileo_iov_eclipse_yaw_angle(
pnt.GnssYawSteering.orbit_noon_angle(m), b, p))
fig, axes = plt.subplots(2, 2, figsize=(12, 7), sharex=True)
for col, (tag, (yaw, rpy_nom, rpy_ded)) in enumerate([(gps_tag, gps), (gal_tag, gal)]):
axes[0, col].plot(t_hours, np.degrees(yaw[:, 0]), lw=0.9, label='nominal')
axes[0, col].plot(t_hours, np.degrees(yaw[:, 1]), lw=0.9, ls='--', label='dedicated')
axes[0, col].set_title(f'{tag}: body-frame yaw angle')
axes[0, col].set_ylabel('yaw [deg]')
axes[0, col].legend(fontsize=8, loc='upper right')
axes[1, col].plot(t_hours, rpy_ded[:, 2] - rpy_nom[:, 2], lw=0.9, color='tab:red')
axes[1, col].set_title(f'{tag}: dedicated - nominal (yaw Euler)')
axes[1, col].set_ylabel('Δ yaw [deg]')
axes[1, col].set_xlabel(f"Hours since {START_DT.strftime('%Y-%m-%d')} 00:00")
for a in axes.ravel():
a.grid(True, lw=0.4, alpha=0.5)
a.axhline(0, color='gray', lw=0.5, ls=':')
plt.tight_layout()
plt.show()
/var/folders/1f/_8g3y5td38n93nph4z3c5d4c0000gn/T/ipykernel_87420/3376774036.py:54: UserWarning: Glyph 916 (\N{GREEK CAPITAL LETTER DELTA}) missing from font(s) cmr10.
plt.tight_layout()
/Users/keidaiiiyama/Documents/sw_navlab/LuPNT/.pixi/envs/default/lib/python3.11/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 916 (\N{GREEK CAPITAL LETTER DELTA}) missing from font(s) cmr10.
fig.canvas.print_figure(bytes_io, **kw)
[16]:

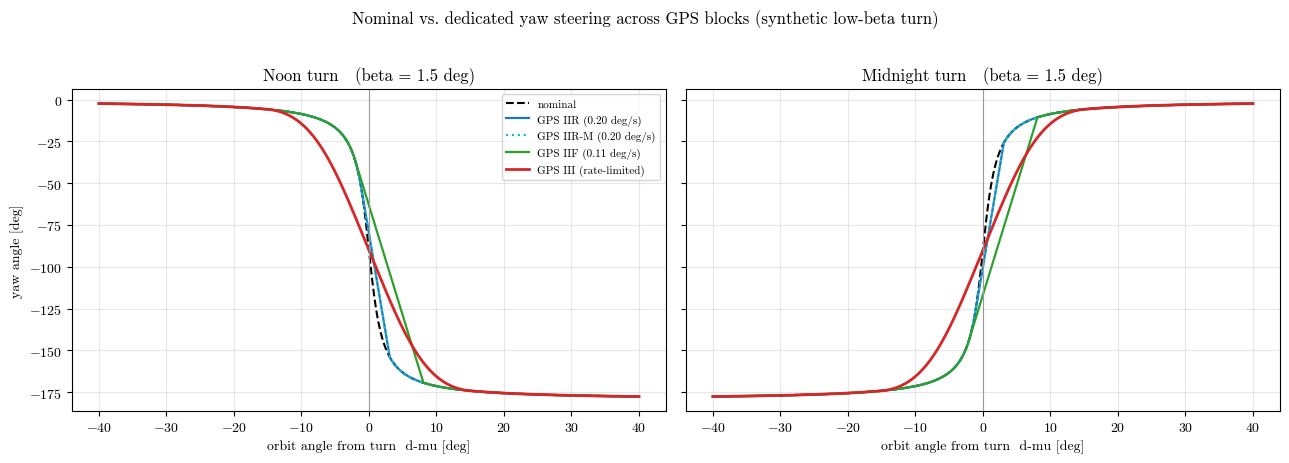

# ── Why the plot above is flat, and how the block laws differ (synthetic turn) ─
# The dedicated (rate-limited) law leaves nominal only during a yaw maneuver -- near orbit
# noon/midnight at LOW Sun elevation |beta|. Confirm the representative GPS satellite's beta:
_valid = [k for k in range(len(r_sun_eci)) if np.all(np.isfinite(results[gps_tag]["rv_sp3"][k]))]
_beta = np.degrees([
float(pnt.GnssYawSteering.beta_angle(results[gps_tag]["rv_sp3"][k, :3],
results[gps_tag]["rv_sp3"][k, 3:], r_sun_eci[k]))
for k in _valid])
print(f"{gps_tag} |beta| over this arc: {abs(_beta).min():.1f}-{abs(_beta).max():.1f} deg "
f"-> outside the GPS III eclipse regime (|beta| < 5.8 deg), so every dedicated law\n"
f"reduces exactly to nominal (no maneuver -> the difference above is zero). Below we sweep "
f"a synthetic low-beta turn to show the block laws differ:")
Y = pnt.GnssYawSteering
d2r, r2d = np.radians, np.degrees
MU_DOT = 2 * np.pi / 43080.0 # GPS mean orbital rate [rad/s]
def _nominal(beta, mu):
return np.arctan2(-np.tan(beta), np.sin(mu))
def _rate_limited(mu, beta, rate_deg_s):
# Cap the yaw slew at the block's hardware rate -- reproduces LuPNT's constant-rate GPS
# IIR/IIF noon/midnight-turn laws (follow nominal, ramp at the limit, then catch up).
t = mu / MU_DOT
phin = np.unwrap(_nominal(beta, mu))
phi = phin.copy()
cap_rate = d2r(rate_deg_s)
for k in range(1, len(mu)):
cap = cap_rate * (t[k] - t[k - 1])
phi[k] = phi[k - 1] + np.clip(phin[k] - phi[k - 1], -cap, cap)
return phi
def _gps3(mu, beta):
return np.array([Y.gps3_eclipse_yaw_angle(beta, m, Y.nominal_yaw_angle(beta, m)) for m in mu])
BETA = d2r(1.5) # small Sun elevation -> a real yaw maneuver
# GPS blocks with a yaw-steering law: IIR / IIR-M share the 0.20 deg/s constant-rate turn,
# IIF uses 0.11 deg/s, and III is smoothly rate-limited (Montenbruck et al., 2026).
BLOCKS = [("IIR", 0.20, "tab:blue", "-"),
("IIR-M", 0.20, "tab:cyan", ":"),
("IIF", 0.11, "tab:green", "-")]
fig, axes = plt.subplots(1, 2, figsize=(13, 4.5), sharey=True)
for ax, (title, mu0) in zip(axes, [("Noon turn", np.pi), ("Midnight turn", 0.0)]):
dmu = d2r(np.linspace(-40, 40, 4001))
mu = mu0 + dmu
ax.plot(r2d(dmu), r2d(np.unwrap(_nominal(BETA, mu))), "k--", lw=1.5, label="nominal")
for name, rate, color, ls in BLOCKS:
ax.plot(r2d(dmu), r2d(_rate_limited(mu, BETA, rate)), color=color, ls=ls, lw=1.6,
label=f"GPS {name} ({rate:.2f} deg/s)")
ax.plot(r2d(dmu), r2d(np.unwrap(_gps3(mu, BETA))), color="tab:red", lw=2.0,
label="GPS III (rate-limited)")
ax.axvline(0.0, color="0.6", lw=0.8)
ax.set_xlabel("orbit angle from turn d-mu [deg]")
ax.set_title(f"{title} (beta = {r2d(BETA):.1f} deg)")
ax.grid(True, alpha=0.3)
axes[0].set_ylabel("yaw angle [deg]")
axes[0].legend(loc="best", fontsize=8)
fig.suptitle("Nominal vs. dedicated yaw steering across GPS blocks (synthetic low-beta turn)",
y=1.02)
plt.tight_layout()
plt.show()
G01 |beta| over this arc: 23.8-25.1 deg -> outside the GPS III eclipse regime (|beta| < 5.8 deg), so every dedicated law
reduces exactly to nominal (no maneuver -> the difference above is zero). Below we sweep a synthetic low-beta turn to show the block laws differ:
