Example 6: GNSS Sidelobe Pseudorange + Doppler + TDCP ODTS with an EKF

This tutorial turns the link-geometry products from Example 5 into an orbit-determination and time-synchronization problem. A lunar-orbiting receiver estimates its position, velocity, clock bias, clock drift, and solar-radiation-pressure coefficient using weak Earth-GNSS sidelobe signals.

The measurement model combines three observables:

\[\rho_k = \|\mathbf r_{rx,k}-\mathbf r_{tx,k}\| + c\,b_k + \Delta_{rel,k}+\Delta_{plasma,k}+\epsilon_{\rho,k},\]

the instantaneous Doppler (range rate), which constrains velocity and clock drift within a single epoch,

\[\dot\rho_k = \frac{(\mathbf r_{rx,k}-\mathbf r_{tx,k})\cdot(\mathbf v_{rx,k}-\mathbf v_{tx,k})}{\|\mathbf r_{rx,k}-\mathbf r_{tx,k}\|} + c\,\dot b_k + \epsilon_{\dot\rho,k},\]

and time-differenced carrier phase (TDCP), which approximately measures the change in range between consecutive epochs:

\[\Delta\Phi_k \approx [\rho_k-\rho_{k-1}] + \epsilon_{\Delta\Phi,k}.\]

Because TDCP references two epochs, the filter uses a stochastic-cloning UDU EKF: the augmented state carries both the current and previous receiver state so the TDCP Jacobian can be formed consistently. This is the main mathematical lesson of the notebook.

The workflow is staged:

  1. precompute GNSS (GPS + Galileo) visibility, antenna gain, and \(C/N_0\);

  2. precompute plasmaspheric delay with GCPM/IRI2007 ray tracing on a coarse cadence and interpolate it to 1 Hz;

  3. run the EKF and inspect orbit, clock, and SRP-coefficient errors.

Truth pseudoranges include the Sun’s Shapiro delay and the GCPM/IRI2007 plasmaspheric delay. The filter models the (small, deterministic) Shapiro delay directly and cancels the first-order plasma delay with the dual-frequency ionosphere-free (L1+L5 / E1+E5a) combination rather than modeling the plasma explicitly; the residual is absorbed through pseudorange measurement-noise inflation. TDCP defaults to single-frequency (L1) carrier phase, so it does not get that cancellation — the truth carrier keeps the full plasmaspheric delay, and its epoch-to-epoch change (RMS ~3.6 cm, tail to ~0.85 m) is a real error the filter never models. TDCP’s noise is therefore inflated well past raw carrier precision (filter_tdcp_noise_inflation_m = 0.20 m) so the EKF stays consistent instead of chasing that delay change as if it were state error; §7c derives this from the data and compares against the ionosphere-free-TDCP alternative (tdcp_ionosphere_free).

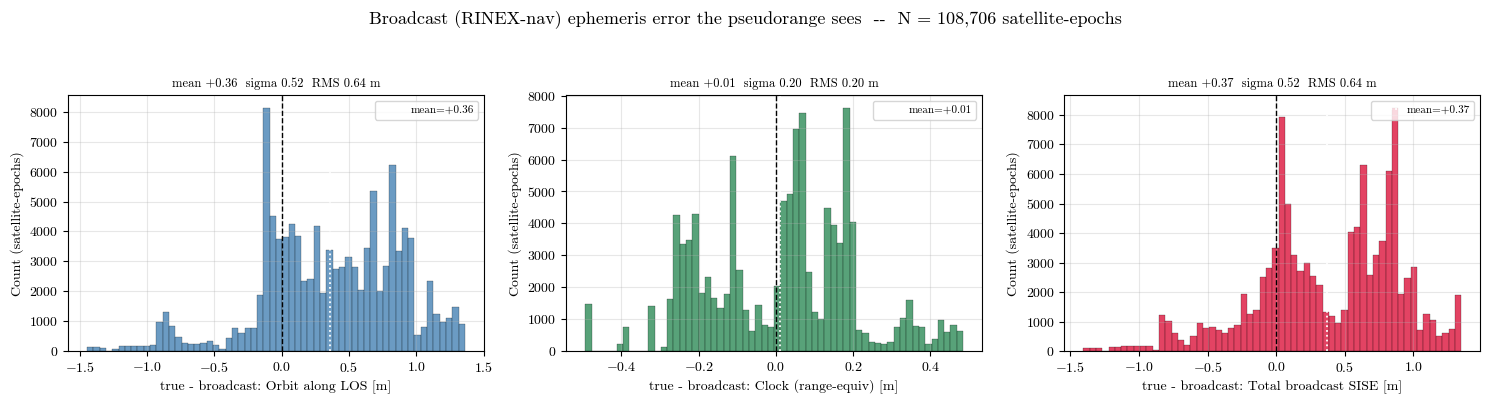

Broadcast vs. precise transmitter ephemeris. A real receiver corrects each GNSS transmitter’s position and clock with the broadcast navigation message, not the precise post-processed product. This notebook models that gap: the truth measurements use the precise SP3 transmitter states, while the filter’s measurement model is fed the broadcast (RINEX-nav) position and clock, evaluated live from the navigation-message parameters at each signal transmit epoch (constellation.use_broadcast_ephemeris). Before injection, the broadcast-minus-precise error is debiased — the per-constellation systematic clock offset (median over all satellites and epochs) and, for QZSS, the per-satellite radial-orbit offset are removed, following the CNAV broadcast-ephemeris evaluation of Montenbruck & Steigenberger (J. Navigation, 2018). The remaining ~1 m orbit / ~few-ns clock prediction error enters the filter as an unmodeled measurement error, so the ODTS solution reflects the broadcast-ephemeris uncertainty a lunar receiver actually faces rather than an idealized perfect-ephemeris case.

The precompute stages write CSV caches under output/python_examples/ex6_gnss_odts_data/. Delete that directory to regenerate all deterministic products.

[1]:

import os
import sys
import time
from pathlib import Path

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# --- Make *this* repo's pylupnt import cleanly, regardless of a global PYTHONPATH (e.g. an
# `export PYTHONPATH=.../some-other/python` in ~/.zshrc) or a reverted Jupyter kernelspec.
# Walk up from the working dir to the repo root (the dir holding python/pylupnt/) and:
#   1. put its python/ first on sys.path so `import pylupnt` finds this build, and
#   2. pin LUPNT_DATA_PATH so pylupnt uses this repo's data and skips its bootstrap
#      download-on-import.
# This cell must run before any other pylupnt import (restart the kernel if it already ran). ---
for _base in [Path.cwd(), *Path.cwd().parents]:
    if (_base / "python" / "pylupnt" / "__init__.py").exists():
        _local_python = str((_base / "python").resolve())
        if _local_python in sys.path:
            sys.path.remove(_local_python)
        sys.path.insert(0, _local_python)
        if (_base / "data" / "LuPNT_data" / "ephemeris").is_dir():
            os.environ["LUPNT_DATA_PATH"] = str(
                (_base / "data" / "LuPNT_data").resolve()
            )
        break

import pylupnt as pnt

print(f"pylupnt loaded from: {pnt.__file__}")
assert hasattr(pnt, "LunarGnssODTSConfig"), (
    "Loaded a stale pylupnt without LunarGnssODTSConfig -- restart the kernel so this cell "
    "runs first, or rebuild this repo's bindings with `pixi run build-py`."
)

[00.01][PyLuPNT] Initializing
pylupnt loaded from: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/python/pylupnt/__init__.py

1. Simulation configuration

LunarGnssODTSConfig is the Python-facing configuration for the same C++ simulation engine used by LuPNT’s staged GNSS filtering pipeline. It defines the truth ELFO, the filter’s reduced dynamics model, receiver-clock process noise, GNSS link-budget settings, plasma-delay options, and EKF tuning.

A key tutorial point is that the filter is intentionally imperfect: truth includes higher-fidelity dynamics and media effects, while the estimator uses a simpler onboard-style model. The measurement covariance is therefore inflated beyond raw tracking precision so the EKF does not chase unmodeled dynamics or plasma delay as if they were real state error.

[2]:

# The scenario lives in `configs/lunar_gnss_odts.yaml` -- the thin agent-based architecture:
# a physical `receiver` Spacecraft hosting a `LunarGnssOdtsApp` (mirroring ex8). It is
# loaded and path-patched by `ex6_gnss_odts_config.load_scenario()`. Its application-block
# scalar values mirror `build_config()` (the struct config still used by the standalone
# precompute + the Stage 2 plasma ray-trace below) field-for-field, so the C++ precompute cache
# -- keyed on a fingerprint of the config -- is shared between this notebook and
# `ex6_precompute.py`. Edit the YAML (or that module) to change the scenario.
from ex6_gnss_odts_config import (
    build_config,
    load_scenario,
    describe,
    DATA_DIR,
    OUTPUT_DIR,
    PLASMA_DELAY_DT_S,
)

cfg = build_config()          # struct config: drives the Stage 2 plasma ray-trace below
scen = load_scenario()        # agent-based scenario dict for pnt.Simulation
sim = pnt.Simulation(scen)
app = sim.get_agent("receiver").get_application()
print(describe(cfg))

Configured 13.19-h run (~1 ELFO orbital period, 47475 s) at 1 Hz starting 2026-01-01T02:00:00
  TDCP on, SRP-coeff estimation on (truth Cr*A/m = 2.00e-3 m^2/kg)
  Pseudorange: ionosphere-free (L1+L5), C/N0 noise + filter inflation (PR 10 m, TDCP 200 mm)
  Tangent-altitude cutoff: PR >= 1000 m, TDCP >= 4000 m
  Constellation: GPS + Galileo, receiver antenna moongpsr, C/N0 gate 22/20 dB-Hz (acquisition/tracking)
  Plasma delay ray-traced every 120 s, interpolated to 1 Hz; progress every 10 rays
  EKF run progress every 1000 epochs (1000 s)
Data directory: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/python_examples/ex6_gnss_odts_data
[01.66][/Users/keidaiiiyama/Documents/sw_navlab/LuPNT/data/LuPNT_data/output/lunar_gnss_odts/lunar_gnss_odts.h5] Output file: {}
[01.66][Simulation] Output file: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/data/LuPNT_data/output/lunar_gnss_odts/lunar_gnss_odts.h5
[01.66][Simulation] Log level set to INFO
[02.32][Agent] No frequency set for lunar_gnss_odts/receiver
[02.32][Simulation] Saved config to /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/data/LuPNT_data/output/lunar_gnss_odts/config.yaml

2. Stage 1 & 2 — Precompute (run the script first!)

Stage 1 (link geometry) and Stage 2 (plasmaspheric ray tracing) are the slow part of this example and are painful to run inside a notebook. Run them once from a terminal:

pixi run python ex6_precompute.py          # generate the cache (Stage 1 + Stage 2)
pixi run python ex6_precompute.py --force  # wipe and regenerate

That uses the exact same config as this notebook (both call ex6_gnss_odts_config.build_config), so afterwards the two cells below are just fast cache reads. sim.precompute() propagates the truth ELFO trajectory, builds the GPS+Galileo constellation, solves visibility/light-time, and writes every tracked link to config.links_file; the C++ side caches it by fingerprinting the config, so re-running is a no-op once the script has produced it. (If you skip the script, the cells still work — they just do the slow work in-notebook.)

[3]:

t0 = time.time()
app.precompute()  # Stage 1: build GNSS link geometry / C-N0 -> precomputed_links.csv cache
print(f"precompute() took {time.time() - t0:.1f} s")

links = pd.read_csv(cfg.links_file)
print(
    f"{len(links)} receiver-satellite-frequency links across "
    f"{links['epoch_index'].nunique()} epochs "
    f"({links.groupby('epoch_index').size().mean():.1f} links/epoch on average)"
)
links.head()

precompute() took 0.0 s
[02.33][LunarGnssODTS] Using cached GNSS link precompute: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/python_examples/ex6_gnss_odts_data/precomputed_links.csv
451327 receiver-satellite-frequency links across 47475 epochs (9.5 links/epoch on average)

[3]:
link_id epoch_index t_tdb t_utc gnss_const_id gnss_const prn frequency_id frequency rx_x_ecef_m ... cn0_dbhz ionosphere_plasma_delay_m tecu tec_delay_m second_delay_m third_delay_m dist_bend_m tec_delay_bend_m max_sep_line_m final_pos_err_m
0 0 0 8.205049e+08 820504800.0 0 GPS 10 0 L1 1.342416e+08 ... 37.319690 0 0 0 0 0 0 0 0 0
1 1 0 8.205049e+08 820504800.0 0 GPS 27 0 L1 1.342416e+08 ... 37.601015 0 0 0 0 0 0 0 0 0
2 2 0 8.205049e+08 820504800.0 0 GPS 10 2 L5 1.342416e+08 ... 42.856147 0 0 0 0 0 0 0 0 0
3 3 0 8.205049e+08 820504800.0 0 GPS 26 2 L5 1.342416e+08 ... 26.184841 0 0 0 0 0 0 0 0 0
4 4 0 8.205049e+08 820504800.0 0 GPS 27 2 L5 1.342416e+08 ... 43.137472 0 0 0 0 0 0 0 0 0

5 rows × 43 columns

3. Stage 2 — Precompute Plasmaspheric Delay (GCPM/IRI2007 Ray Trace)

This mirrors projects/GNSS_Filtering/precompute_delays.py: pnt.trace_ray integrates the GCPM/IRI2007 electron-density model along the transmitter-receiver line of sight and returns the total electron content (TEC) delay plus higher-order (2nd/3rd) ionospheric terms.

Ray tracing is the slow step (one trace per link), and at 1 Hz over a full orbital period there are far too many links to trace directly. Instead, this stage ray-traces only “anchor” epochs on a ``PLASMA_DELAY_DT_S`` = 120 s cadence and linearly interpolates each satellite-frequency link’s delay in time to the 1 Hz schedule — the receiver’s sidelobe geometry, and hence the plasmaspheric path, varies slowly enough over two minutes for linear interpolation to be accurate. This cuts the trace count by roughly the cadence factor (~120×). A satellite whose entire pass falls between two anchors (shorter than the cadence) has no anchor to interpolate from and is traced directly as a fallback, so a real delay is never silently zeroed.

The remaining anchor traces are run in parallel across processes with a multiprocessing fork pool (N_DELAY_WORKERS = os.cpu_count()). Ray tracing is CPU-bound and each trace is independent, so this scales ~linearly with cores. A fork context is used deliberately: each worker then inherits the parent’s already-configured rt_config and pnt module, and the notebook-scope worker function resolves in the child (the default spawn start method on some platforms cannot pickle functions defined in a notebook cell). Results are cached to config.delays_file — which stores a delay for every 1 Hz link, so the C++ engine reads it unchanged — and reused on subsequent runs.

[4]:

# Stage 2 (plasmaspheric ray tracing) is slow. Prefer running it once from a terminal:
#     pixi run python ex6_precompute.py
# Then this cell just loads the cached CSV. If the cache is missing, it falls back to the
# same `compute_delays` the script uses (which will be slow inside the notebook).
from ex6_precompute import compute_delays, delays_cache_valid

delays_path = Path(cfg.delays_file)
if delays_cache_valid(cfg, PLASMA_DELAY_DT_S):
    print(f"Reusing cached plasma delays (settings match): {delays_path}")
    delays = pd.read_csv(delays_path)
else:
    print(
        "No up-to-date cached delays for these settings -- ray-tracing now (slow in a "
        "notebook; prefer `pixi run python ex6_precompute.py` in a terminal)."
    )
    delays = compute_delays(cfg, links, PLASMA_DELAY_DT_S)

print(
    f"Plasma delay range: {delays['ionosphere_plasma_delay_m'].min():.2f} - "
    f"{delays['ionosphere_plasma_delay_m'].max():.2f} m"
)

Reusing cached plasma delays (settings match): /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/python_examples/ex6_gnss_odts_data/precomputed_delays.csv
Plasma delay range: 0.00 - 133.91 m

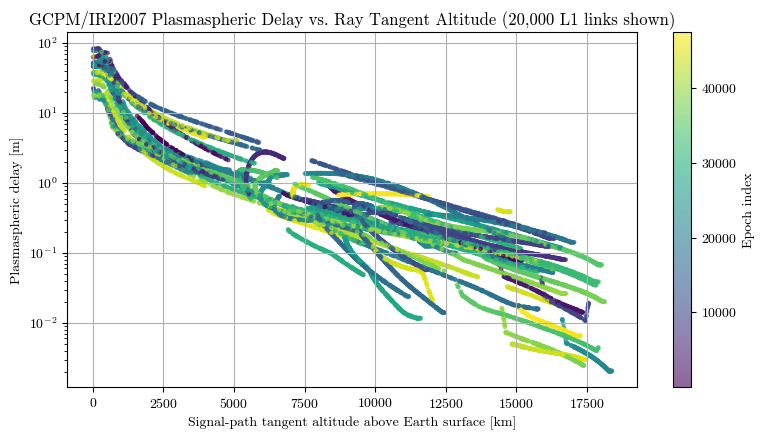

Sanity check: delay vs. ray tangent altitude

The plasmaspheric delay should fall off roughly monotonically as the signal path’s tangent point rises away from the denser plasmasphere near Earth.

[5]:

# Sanity check plots only the ray-traced L1 links (the ones carrying a real plasma delay).
# The full-orbit `delays` table has hundreds of thousands of rows -- mostly zero-delay
# L5/Galileo/occulted links -- and scattering all of them overwhelms matplotlib's Agg
# renderer ("OverflowError: Exceeded cell block limit"). Filter to L1, non-occulted, and cap
# the marker count.
plot_df = delays[(delays["frequency"] == "L1") & (delays["tangent_altitude_m"] >= 0.0)]
plot_df = plot_df[
    plot_df[["tangent_altitude_m", "ionosphere_plasma_delay_m"]].notna().all(axis=1)
]
MAX_MARKERS = 20000
if len(plot_df) > MAX_MARKERS:
    plot_df = plot_df.sample(MAX_MARKERS, random_state=0)

fig, ax = plt.subplots(figsize=(8, 4.5))
sc = ax.scatter(
    plot_df["tangent_altitude_m"] / 1e3,
    plot_df["ionosphere_plasma_delay_m"],
    s=6,
    c=plot_df["epoch_index"],
    cmap="viridis",
    alpha=0.6,
)
ax.set_xlabel("Signal-path tangent altitude above Earth surface [km]")
ax.set_ylabel("Plasmaspheric delay [m]")
ax.set_title(
    f"GCPM/IRI2007 Plasmaspheric Delay vs. Ray Tangent Altitude "
    f"({len(plot_df):,} L1 links shown)"
)
plt.colorbar(sc, ax=ax, label="Epoch index")
ax.grid(True)
ax.set_yscale("log")
plt.tight_layout()
plt.show()
../../_images/tutorial_Python_ex6_gnss_odts_9_0.png

4. Run the EKF

sim.run() reads config.delays_file (since plasma.simulate_truth=True), builds noisy truth pseudorange, Doppler, and TDCP observations, and runs the UDU stochastic-cloning EKF (because use_tdcp=True) over the full receiver-app schedule. It writes trajectory_mc0.csv and summary.csv under config.output_dir and returns one LunarGnssODTSSummary per Monte Carlo run.

[6]:

t0 = time.time()
traj_file = Path(cfg.output_dir) / "trajectory_mc0.csv"
if traj_file.exists():
    print(f"Reusing cached trajectory: {traj_file}")
else:
    print(f"Running the EKF (agent-based LunarGnssOdtsApp); trajectory -> {traj_file}...")
    sim.run()
    print(f"run() took {time.time() - t0:.1f} s")

    summary = app.get_summaries()[0]
    print(f"Final position error:    {summary.final_position_error_m:8.3f} m")
    print(
        f"Final velocity error:    {summary.final_velocity_error_mps * 1e3:8.3f} mm/s"
    )
    print(f"Final clock bias error:  {summary.final_clock_bias_error_m * 1e2:8.3f} cm")
    print(
        f"Final clock drift error: {summary.final_clock_drift_error_mps * 1e3:8.3f} mm/s"
    )
    print(f"RMS position error:      {summary.rms_position_error_m:8.3f} m")
    print(f"RMS velocity error:      {summary.rms_velocity_error_mps * 1e3:8.3f} mm/s")
    if cfg.estimate_srp_coefficient:
        srp_est = cfg.srp_coeff_truth_m2_kg + summary.final_srp_coeff_error_m2_kg
        print(
            f"Final SRP coeff est:     {srp_est * 1e3:8.3f} e-3 m^2/kg "
            f"(truth {cfg.srp_coeff_truth_m2_kg * 1e3:.3f}e-3, "
            f"err {summary.final_srp_coeff_error_m2_kg * 1e3:+.3f}e-3)"
        )

traj = pd.read_csv(Path(cfg.output_dir) / "trajectory_mc0.csv")
traj["t_min"] = traj["t"] / 60.0
traj["t_hr"] = traj["t"] / 3600.0
traj.head()

Reusing cached trajectory: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/python_examples/ex6_gnss_odts_data/trajectory_mc0.csv

[6]:
mc t receiver_clock_s pos_error_m vel_error_mps x_error_m y_error_m z_error_m vx_error_mps vy_error_mps ... clock_bias_3sigma_m clock_drift_3sigma_mps srp_coeff_est_m2_kg srp_coeff_error_m2_kg srp_coeff_3sigma_m2_kg num_channels num_tracked_satellites num_measurements t_min t_hr
0 0 0 0.000002 153.776 0.106381 -78.4435 -130.408 22.0773 0.049280 0.092919 ... 285.200 0.008994 0.000232 -0.001768 0.003 3 3 3 0.000000 0.000000
1 0 1 1.000000 153.680 0.080464 -75.6371 -131.810 22.8662 0.038385 0.070650 ... 284.873 0.008992 0.000232 -0.001768 0.003 3 3 6 0.016667 0.000278
2 0 2 2.000000 152.077 0.069649 -72.3209 -132.167 20.7156 0.033581 0.060974 ... 284.764 0.008991 0.000232 -0.001768 0.003 3 3 6 0.033333 0.000556
3 0 3 3.000000 149.580 0.064501 -64.5266 -133.852 17.1497 0.031202 0.056236 ... 284.708 0.008991 0.000232 -0.001768 0.003 3 3 6 0.050000 0.000833
4 0 4 4.000000 152.950 0.060919 -76.7494 -130.493 21.7895 0.029448 0.052910 ... 284.674 0.008991 0.000232 -0.001768 0.003 3 3 6 0.066667 0.001111

5 rows × 41 columns

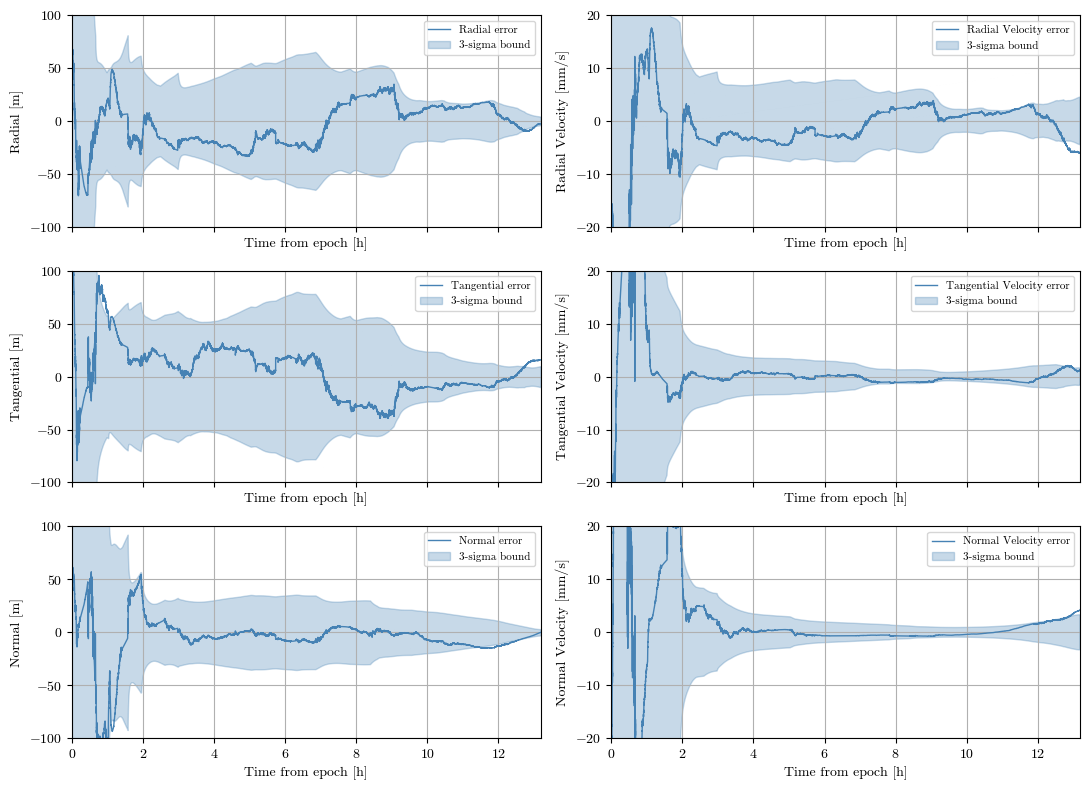

5. Position Error in the RTN Frame, with 3-sigma Bounds

r/t/n are the radial/transverse/normal components of the position error; the shaded band is the filter’s own formal 3-sigma envelope (*_3sigma_m columns), computed from the EKF covariance at each epoch.

[7]:

fig, axes = plt.subplots(3, 2, figsize=(11, 8), sharex=True)
for row, (key, name) in zip(
    [0, 1, 2, 0, 1, 2],
    [
        ("r", "Radial"),
        ("t", "Tangential"),
        ("n", "Normal"),
        ("rdot", "Radial Velocity"),
        ("tdot", "Tangential Velocity"),
        ("ndot", "Normal Velocity"),
    ],
):
    if key in ["r", "t", "n"]:
        col = 0
        suffix = "m"
        axes[row, col].set_ylim(-100, 100)
        scale = 1.0
        axes[row, col].set_ylabel(f"{name} [m]")
        axes[row, col].grid(True)
    else:
        col = 1
        suffix = "mps"
        axes[row, col].set_ylim(-20, 20)
        scale = 1000.0
        axes[row, col].set_ylabel(f"{name} [mm/s]")
        axes[row, col].grid(True)

    err = traj[f"{key}_error_{suffix}"]
    sig = traj[f"{key}_3sigma_{suffix}"]
    axes[row, col].plot(
        traj["t_hr"], err * scale, color="steelblue", lw=1.0, label=f"{name} error"
    )
    axes[row, col].fill_between(
        traj["t_hr"],
        -sig * scale,
        sig * scale,
        color="steelblue",
        alpha=0.3,
        label="3-sigma bound",
    )
    axes[row, col].legend(loc="upper right", fontsize=8)
    axes[row, col].set_xlabel("Time from epoch [h]")
    axes[row, col].set_xlim(0, traj["t_hr"].max())
plt.tight_layout()
plt.show()
../../_images/tutorial_Python_ex6_gnss_odts_13_0.png

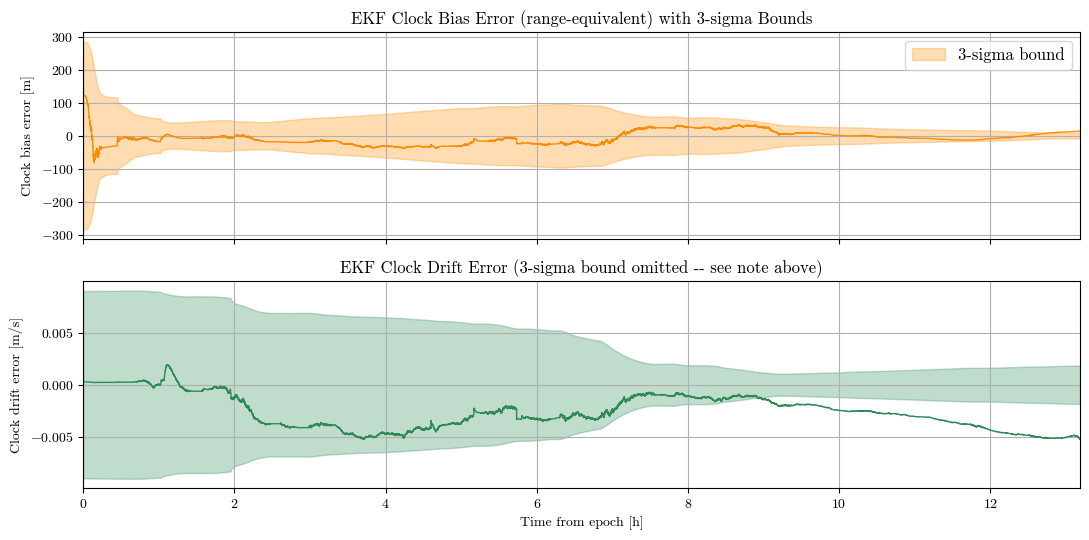

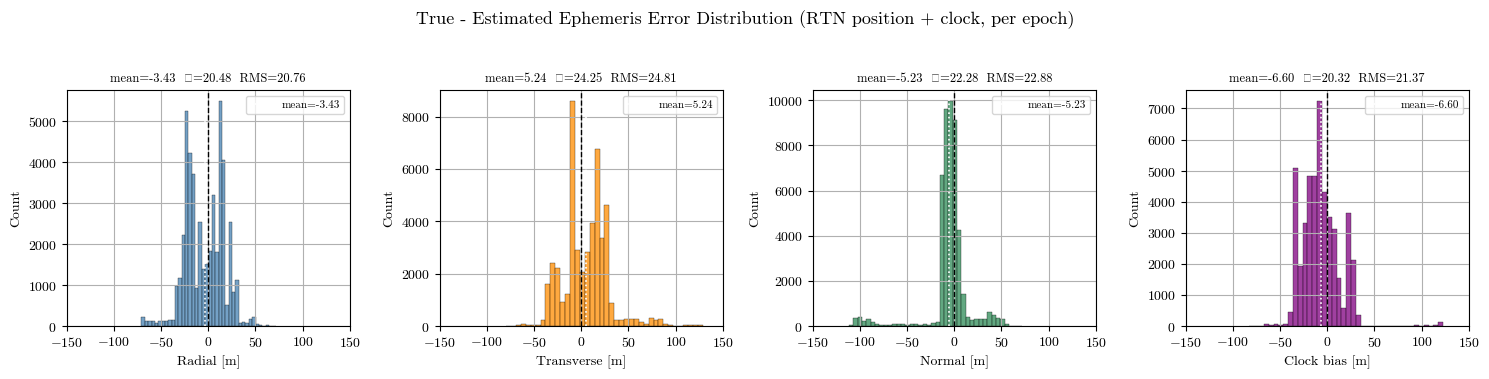

6. Clock Bias and Drift Error

Clock errors are reported in range-equivalent units (c * dt), matching the pseudorange measurement’s own units.

[8]:

fig, axes = plt.subplots(2, 1, figsize=(11, 5.5), sharex=True)

axes[0].plot(traj["t_hr"], traj["clock_bias_error_m"], color="darkorange", lw=1.0)
axes[0].fill_between(
    traj["t_hr"],
    -traj["clock_bias_3sigma_m"],
    traj["clock_bias_3sigma_m"],
    color="darkorange",
    alpha=0.3,
    label="3-sigma bound",
)
axes[0].set_ylabel("Clock bias error [m]")
axes[0].set_title("EKF Clock Bias Error (range-equivalent) with 3-sigma Bounds")
axes[0].legend(loc="upper right", fontsize=12)
axes[0].grid(True)

# No 3-sigma shading here -- see the markdown note above on why clock_drift_3sigma_mps
# is not trustworthy (covariance conditioning, unrelated to TDCP).
axes[1].plot(traj["t_hr"], traj["clock_drift_error_mps"], color="seagreen", lw=1.0)
axes[1].fill_between(
    traj["t_hr"],
    -traj["clock_drift_3sigma_mps"],
    traj["clock_drift_3sigma_mps"],
    color="seagreen",
    alpha=0.3,
    label="3-sigma bound (not trustworthy -- see note above)",
)
axes[1].set_ylabel("Clock drift error [m/s]")
axes[1].set_title("EKF Clock Drift Error (3-sigma bound omitted -- see note above)")
axes[1].set_xlabel("Time from epoch [h]")
axes[1].set_xlim(0, traj["t_hr"].max())
axes[1].grid(True)

plt.tight_layout()
plt.show()
../../_images/tutorial_Python_ex6_gnss_odts_15_0.png

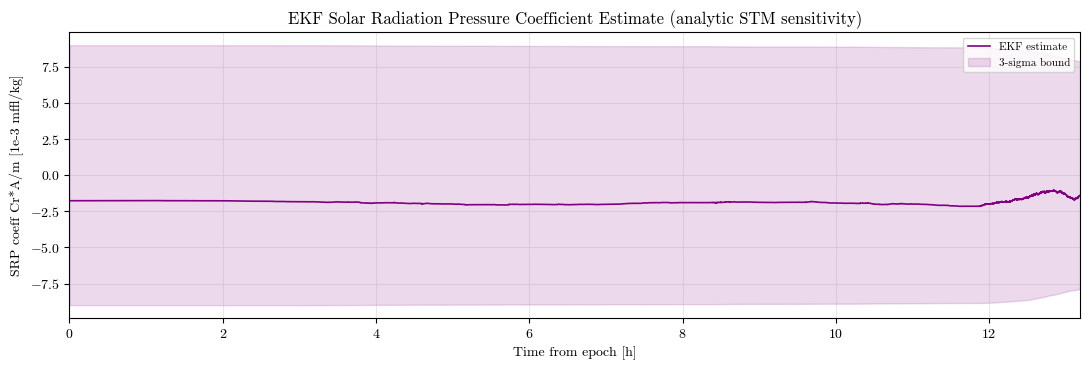

6b. Solar Radiation Pressure Coefficient Estimate

With estimate_srp_coefficient=True, the filter carries the SRP coefficient (Cr*A/m) as a 9th state alongside orbit and clock. Its sensitivity is propagated analytically: LunarGnssOdtsApp calls NBodyDynamics::PropagateWithParams on the C++ JointOrbitClockState with an SRP ParamState, so the epoch-to-epoch state-transition matrix already contains the ∂x/∂(Cr*A/m) param-partial block (stm_param) — there is no numerical differencing of the dynamics to build the Jacobian.

The truth ELFO is perturbed with srp_coeff_truth_m2_kg while the filter starts from a deliberately biased initial_srp_coeff_m2_kg; the plot below shows the estimate pulling toward the dashed truth line. SRP is only weakly observable over a single orbit (it acts as a slow, mostly along-track acceleration), so convergence is gradual and the formal 3-sigma band shrinks slowly — one orbital period is about the shortest useful arc for seeing it move at all.

[9]:

est = traj["srp_coeff_est_m2_kg"] * 1e3  # 1e-3 m^2/kg
true_val = cfg.srp_coeff_truth_m2_kg * 1e3  # 1e-3 m^2/kg
sig = traj["srp_coeff_3sigma_m2_kg"] * 1e3

fig, ax = plt.subplots(figsize=(11, 3.8))
ax.plot(traj["t_hr"], est - true_val, color="purple", lw=1.2, label="EKF estimate")
ax.fill_between(
    traj["t_hr"],
    -3 * sig,
    3 * sig,
    color="purple",
    alpha=0.15,
    label="3-sigma bound",
)
ax.set_xlabel("Time from epoch [h]")
ax.set_ylabel("SRP coeff Cr*A/m [1e-3 m²/kg]")
ax.set_title(
    "EKF Solar Radiation Pressure Coefficient Estimate (analytic STM sensitivity)"
)
ax.set_xlim(0, traj["t_hr"].max())
ax.legend(loc="upper right", fontsize=8)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
../../_images/tutorial_Python_ex6_gnss_odts_17_0.png

6c. Error Distribution (True − Estimated)

Histograms of the per-epoch ephemeris error over the full run — radial / transverse / normal position components and the range-equivalent clock bias — each annotated with mean, standard deviation, and RMS. A well-tuned filter centers each distribution near zero with a spread consistent with the 3-sigma envelopes in §5–6. This is the distribution over epochs of a single Monte Carlo run; raise cfg.monte_carlo_runs for a cross-run distribution.

[10]:

dist_cols = [
    ("r_error_m", "Radial [m]", "steelblue"),
    ("t_error_m", "Transverse [m]", "darkorange"),
    ("n_error_m", "Normal [m]", "seagreen"),
    ("clock_bias_error_m", "Clock bias [m]", "purple"),
]

fig, axes = plt.subplots(1, 4, figsize=(15, 3.6))
for ax, (col, label, color) in zip(axes, dist_cols):
    data = traj[col].to_numpy()
    mean, std = float(np.mean(data)), float(np.std(data))
    rms = float(np.sqrt(np.mean(data**2)))
    ax.hist(data, bins=40, color=color, alpha=0.75, edgecolor="k", lw=0.3)
    ax.axvline(0.0, color="k", ls="--", lw=1.0)
    ax.axvline(mean, color="white", ls=":", lw=1.2, label=f"mean={mean:.2f}")
    ax.set_xlabel(label)
    ax.set_ylabel("Count")
    ax.set_title(f"mean={mean:.2f}  σ={std:.2f}  RMS={rms:.2f}", fontsize=9)
    ax.legend(fontsize=8, loc="upper right")
    ax.grid(True)
    ax.set_xlim(-150, 150)
fig.suptitle(
    "True - Estimated Ephemeris Error Distribution (RTN position + clock, per epoch)",
    y=1.04,
    fontsize=13,
)
plt.tight_layout()
plt.show()

print(f"{'Component':<16}{'mean':>10}{'std':>10}{'RMS':>10}{'95th |err|':>12}")
print("-" * 58)
for col, label, _ in dist_cols:
    d = traj[col].to_numpy()
    print(
        f"{label:<16}{np.mean(d):>10.3f}{np.std(d):>10.3f}{np.sqrt(np.mean(d**2)):>10.3f}"
        f"{np.percentile(np.abs(d), 95):>12.3f}"
    )

/var/folders/1f/_8g3y5td38n93nph4z3c5d4c0000gn/T/ipykernel_74101/14268039.py:27: UserWarning: Glyph 963 (\N{GREEK SMALL LETTER SIGMA}) missing from font(s) cmr10.
  plt.tight_layout()
/Users/keidaiiiyama/Documents/sw_navlab/LuPNT/.pixi/envs/default/lib/python3.11/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 963 (\N{GREEK SMALL LETTER SIGMA}) missing from font(s) cmr10.
  fig.canvas.print_figure(bytes_io, **kw)
../../_images/tutorial_Python_ex6_gnss_odts_19_1.png
Component             mean       std       RMS  95th |err|
----------------------------------------------------------
Radial [m]          -3.432    20.476    20.761      32.842
Transverse [m]       5.241    24.253    24.813      47.331
Normal [m]          -5.226    22.279    22.884      51.633
Clock bias [m]      -6.600    20.323    21.368      33.949

7. Sidelobe Tracking and TDCP Contribution

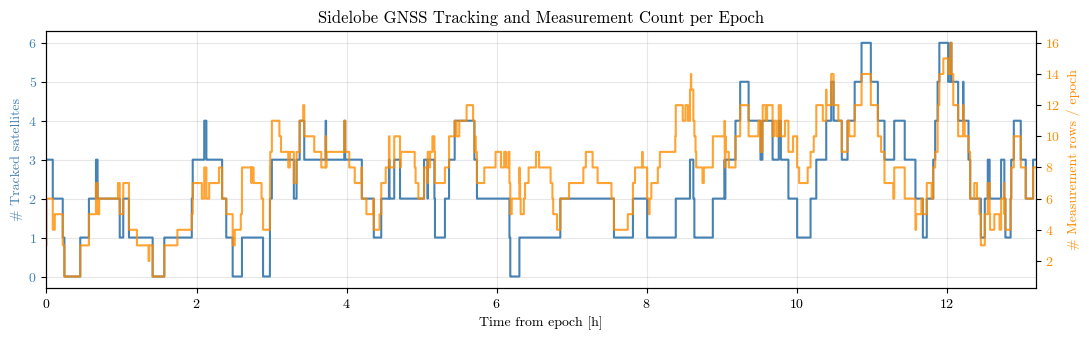

num_tracked_satellites is the number of distinct GNSS (GPS + Galileo) satellites tracked via sidelobe reception at each epoch; num_measurements is the total measurement-row count fed to the filter that epoch (pseudorange and Doppler rows plus one TDCP row per continuously tracked link). The first epoch has no TDCP rows since there is no previous epoch to difference against.

[11]:

fig, ax1 = plt.subplots(figsize=(11, 3.5))
ax1.step(
    traj["t_hr"],
    traj["num_tracked_satellites"],
    where="post",
    color="steelblue",
    label="Tracked GNSS satellites (sidelobe)",
)
ax1.set_xlabel("Time from epoch [h]")
ax1.set_ylabel("# Tracked satellites", color="steelblue")
ax1.tick_params(axis="y", labelcolor="steelblue")
ax1.set_xlim(0, traj["t_hr"].max())

ax2 = ax1.twinx()
ax2.step(
    traj["t_hr"],
    traj["num_measurements"],
    where="post",
    color="darkorange",
    alpha=0.8,
    label="Measurement rows (pseudorange + Doppler + TDCP)",
)
ax2.set_ylabel("# Measurement rows / epoch", color="darkorange")
ax2.tick_params(axis="y", labelcolor="darkorange")

ax1.set_title("Sidelobe GNSS Tracking and Measurement Count per Epoch")
ax1.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

n_tdcp_epochs = int((traj["num_measurements"] > traj["num_tracked_satellites"]).sum())
print(f"Epochs with at least one TDCP row: {n_tdcp_epochs}/{len(traj)}")
../../_images/tutorial_Python_ex6_gnss_odts_21_0.png
Epochs with at least one TDCP row: 47474/47475

7c. Making TDCP consistent — the single-frequency plasma leak

TDCP is extremely precise (carrier phase, ~mm), so it is tempting to hand the filter a correspondingly tight measurement noise. Doing so is a trap. TDCP is single-frequency (GPS L1 / Galileo E1), so unlike the pseudorange it gets no ionosphere-free cancellation: the truth carrier keeps the ray-traced plasmaspheric delay, and its epoch-to-epoch change is a real error the filter never models (plasma.model_in_filter=false). Measured directly from precomputed_delays.csv for this arc, that per-second delta is RMS 3.6 cm, p95 1.9 cm, p99 14 cm, with a tail to ~0.85 m — three-plus orders of magnitude larger than the raw carrier precision.

Feed TDCP at ~1 cm and the EKF treats those plasma-delta spikes as state error, chases them, and the covariance collapses far below the true error — the classic inconsistent filter (σ < error). The knob is filter_tdcp_noise_inflation_m. Sweeping it on the full 14 h arc (single Monte-Carlo seed; norm-err RMS = RMS of error/σ per axis, ≈ 1 when consistent):

configuration

TDCP meas/epoch

norm-err RMS (R/T/N)

pos RMS

final err

pseudorange only

0

2.0 / 2.1 / 1.4

54.6 m

23.2 m

+ TDCP, inflation 1 cm

5.4

25 / 31 / 49

768 m

106 m

+ TDCP, inflation 0.20 m (default)

5.4

1.6 / 1.6 / 1.6

39.6 m

16.1 m

At 1 cm the filter diverges; at 0.20 m — which covers the plasma-delta distribution — TDCP is as consistent as the pseudorange-only baseline and improves accuracy (pos RMS 54.6 → 39.6 m, final 23.2 → 16.1 m). (Process noise is not the lever here: the solution is measurement-dominated, and the residual ~1.6× overconfidence is a pre-existing baseline effect present in the pseudorange-only case too.)

Why not cancel the plasma with ionosphere-free TDCP?

The plasma delay is 99.96 % first-order, so an L1+L5 / E1+E5a carrier combination cancels it to ~1 mm — exactly as the pseudorange does. Set tdcp_ionosphere_free: true to use it. But it does not win in this scenario, for two compounding reasons:

  1. Coverage. Ionosphere-free TDCP needs both frequencies on a satellite; single-frequency TDCP needs only L1. At this lunar sidelobe geometry far more satellites carry L1 than L1+L5, so IF-TDCP roughly halves the TDCP count (5.4 → 2.3 rows/epoch).

  2. The binding residual isn’t the plasma. Once plasma is cancelled, TDCP’s precision exposes a frequency-independent residual — the broadcast-ephemeris error and its drift plus receiver-clock short-term noise (≈ 0.1–0.15 m equivalent, see §7b) — that IF cannot cancel and process noise cannot cover. So the inflation needed for consistency (~0.15–0.20 m) already exceeds the 3.6 cm plasma, and cancelling plasma buys nothing while the coverage loss hurts.

At equal 0.20 m inflation, IF-TDCP lands at pos RMS 51.1 m / final 19.7 m — worse than the single-frequency 39.6 m / 16.1 m purely from the halved coverage. Single-frequency TDCP with a 0.20 m inflation is the right choice here; keep tdcp_ionosphere_free for regimes where the plasma dominates (high solar activity, lower orbits, or tighter clocks) and dual-frequency sidelobe coverage is good.

7b. Broadcast Ephemeris Error Distribution (true − broadcast)

Each epoch the run records, per tracked satellite, the two halves of the broadcast (RINEX-nav) signal-in-space error the pseudorange actually sees, both as true − broadcast, to ephemeris_residuals_mc0.csv (columns mc, epoch, t_s, gnss, prn, eph_los_m, eph_clk_m; the same eph_los_m/eph_clk_m shown in the per-epoch measurement debug table):

  • ``eph_los_m`` — the transmitter orbit (position) error projected onto the receiver→transmitter line of sight [m].

  • ``eph_clk_m`` — the transmitter clock error in range units, \(c\,\Delta t_{tx}\) [m].

Their sum is the total broadcast range error entering the pseudorange (the residual the filter must absorb). All are deterministic, so identical across Monte-Carlo runs, and reflect the residual error after the per-constellation clock (and QZSS radial) debiasing.

[12]:

eph_path = Path(cfg.output_dir) / "ephemeris_residuals_mc0.csv"
if not eph_path.exists():
    print(
        f"{eph_path} not found -- run the EKF in section 4 (delete trajectory_mc0.csv to force a "
        "re-run) so it writes the per-satellite ephemeris residuals."
    )
else:
    eph = pd.read_csv(eph_path)
    # Both are (true - broadcast): orbit = transmitter position error along the line of sight,
    # clock = transmitter clock error in range units. `total` is their sum -- the broadcast
    # range error the pseudorange sees (the residual the filter must absorb, up to sign).
    eph["total_m"] = eph["eph_los_m"] + eph["eph_clk_m"]
    comps = [
        ("eph_los_m", "Orbit along LOS [m]", "steelblue"),
        ("eph_clk_m", "Clock (range-equiv) [m]", "seagreen"),
        ("total_m", "Total broadcast SISE [m]", "crimson"),
    ]

    fig, axes = plt.subplots(1, 3, figsize=(15, 3.8))
    for ax, (col, label, color) in zip(axes, comps):
        d = eph[col].to_numpy()
        ax.hist(d, bins=60, color=color, alpha=0.8, edgecolor="k", lw=0.2)
        ax.axvline(0.0, color="k", ls="--", lw=1.0)
        ax.axvline(d.mean(), color="white", ls=":", lw=1.3, label=f"mean={d.mean():+.2f}")
        ax.set_xlabel(f"true - broadcast: {label}")
        ax.set_ylabel("Count (satellite-epochs)")
        ax.set_title(f"mean {d.mean():+.2f}  sigma {d.std():.2f}  RMS {np.sqrt(np.mean(d**2)):.2f} m",
                     fontsize=9)
        ax.legend(fontsize=8, loc="upper right")
        ax.grid(True, alpha=0.3)
    fig.suptitle(f"Broadcast (RINEX-nav) ephemeris error the pseudorange sees  --  "
                 f"N = {len(eph):,} satellite-epochs", y=1.05, fontsize=13)
    plt.tight_layout()
    plt.show()

    print(f"{'':<10}{'component':<14}{'N':>8}{'mean':>10}{'std':>10}{'RMS':>10}{'95th|.|':>10}")
    print("-" * 72)
    for g, sub in eph.groupby("gnss"):
        for col, label, _ in comps:
            v = sub[col].to_numpy()
            print(f"{g:<10}{label.split(' [')[0]:<14}{len(v):>8}{v.mean():>10.3f}{v.std():>10.3f}"
                  f"{np.sqrt(np.mean(v**2)):>10.3f}{np.percentile(np.abs(v), 95):>10.3f}")
../../_images/tutorial_Python_ex6_gnss_odts_24_0.png
          component            N      mean       std       RMS   95th|.|
------------------------------------------------------------------------
GALILEO   Orbit along LOS   30315     0.030     0.155     0.158     0.345
GALILEO   Clock (range-equiv)   30315     0.146     0.150     0.209     0.451
GALILEO   Total broadcast SISE   30315     0.176     0.267     0.319     0.628
GPS       Orbit along LOS   78391     0.488     0.558     0.741     1.220
GPS       Clock (range-equiv)   78391    -0.041     0.188     0.192     0.343
GPS       Total broadcast SISE   78391     0.447     0.572     0.726     1.197

7d. Monte Carlo — ensemble spread and pseudorange vs. pseudorange + TDCP

A single EKF run is one draw of the measurement-noise and initial-estimate randomness. To see the ensemble behavior — and to compare pseudorange-only against pseudorange + TDCP fairly — we run a small Monte Carlo. Every trial shares the same truth trajectory and link geometry (both deterministic, built once), and only the per-run realization changes: trial \(i\) uses seed = cfg.seed + i for the measurement noise and the initial-estimate perturbation.

Monte Carlo is a simulation-level concern here. The C++ engine loops it internally when simulation.monte_carlo_runs > 1, reusing the one expensive precompute (links + plasma delays) and writing trajectory_mc0.csv … trajectory_mc{N-1}.csv. (For cheap scenarios that instead want process-level parallelism across configs, pnt.run_monte_carlo spreads trials over a multiprocessing pool — but for ex6 the single shared precompute makes the in-engine loop the right choice.)

The cell below runs N_MC = 3 trials for each of two variants — pseudorange-only and pseudorange + TDCP — into separate output directories, then the following cells plot the ensemble spread and the head-to-head accuracy. Each variant is ~1 min/run and is cached after the first execution.

[13]:

# Run (or load cached) N_MC trials for each variant. Both share the single precompute above;
# only `output_dir` (to avoid trajectory_mc*.csv collisions), `monte_carlo_runs`, and
# `use_tdcp` change. `seed = cfg.seed + i` per trial is applied inside the C++ engine.
N_MC = 3
MC_VARIANTS = {  # label: (subdirectory, use_tdcp)
    "Pseudorange only": ("mc_pr_only", False),
    "Pseudorange + TDCP": ("mc_pr_tdcp", True),
}


def _run_or_load_mc(subdir, use_tdcp):
    vdir = Path(cfg.output_dir) / subdir
    if not all((vdir / f"trajectory_mc{i}.csv").exists() for i in range(N_MC)):
        vdir.mkdir(parents=True, exist_ok=True)
        s = load_scenario()
        a = s["agents"]["receiver"]["application"]
        a["simulation"]["output_dir"] = str(vdir)
        a["simulation"]["monte_carlo_runs"] = N_MC
        a["simulation"]["run_progress_interval_epochs"] = 0
        a["measurements"]["use_tdcp"] = use_tdcp
        print(f"Running {N_MC} MC EKF runs (use_tdcp={use_tdcp}) -> {vdir} ...")
        pnt.Simulation(s).run()
    runs = []
    for i in range(N_MC):
        r = pd.read_csv(vdir / f"trajectory_mc{i}.csv")
        r["t_hr"] = r["t"] / 3600.0
        runs.append(r)
    return runs


mc = {label: _run_or_load_mc(sub, use_tdcp) for label, (sub, use_tdcp) in MC_VARIANTS.items()}
print({label: f"{len(runs)} runs x {len(runs[0])} epochs" for label, runs in mc.items()})

{'Pseudorange only': '3 runs x 47475 epochs', 'Pseudorange + TDCP': '3 runs x 47475 epochs'}

[14]:

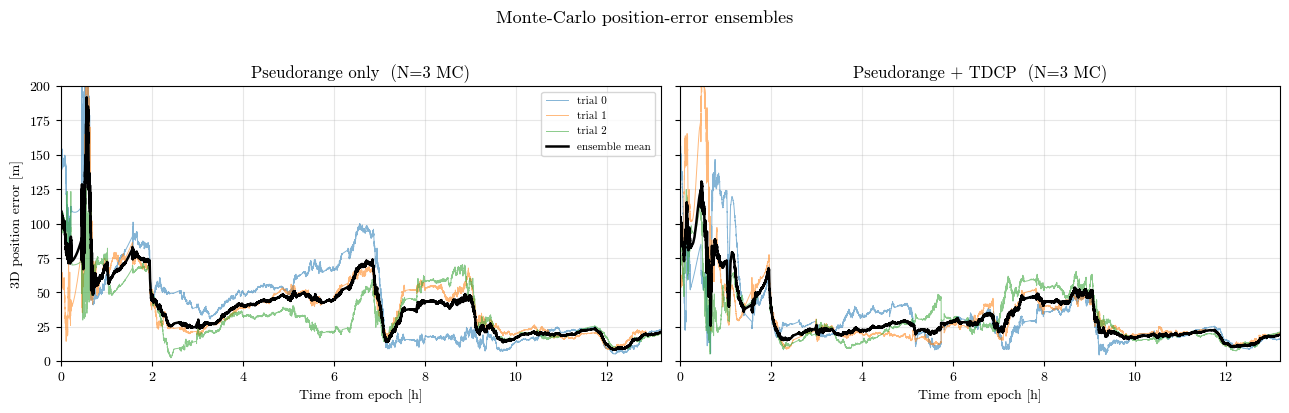

# Ensemble spread: 3D position error vs. time for each MC trial (thin) plus the ensemble mean
# (thick). Left = pseudorange only, right = pseudorange + TDCP. TDCP tightens the spread and
# pulls the whole ensemble down.
fig, axes = plt.subplots(1, 2, figsize=(13, 4), sharey=True)
for ax, (label, runs) in zip(axes, mc.items()):
    stack = np.vstack([r["pos_error_m"].to_numpy() for r in runs])
    for i, r in enumerate(runs):
        ax.plot(r["t_hr"], r["pos_error_m"], lw=0.7, alpha=0.55, label=f"trial {i}")
    ax.plot(runs[0]["t_hr"], stack.mean(axis=0), color="k", lw=1.8, label="ensemble mean")
    ax.set_title(f"{label}  (N={len(runs)} MC)")
    ax.set_xlabel("Time from epoch [h]")
    ax.set_xlim(0, runs[0]["t_hr"].max())
    ax.set_ylim(0, 200)
    ax.grid(True, alpha=0.3)
axes[0].set_ylabel("3D position error [m]")
axes[0].legend(fontsize=8, loc="upper right")
fig.suptitle("Monte-Carlo position-error ensembles", y=1.02, fontsize=13)
plt.tight_layout()
plt.show()
../../_images/tutorial_Python_ex6_gnss_odts_27_0.png
[15]:

# Head-to-head: RMS and final 3D position error per trial, pseudorange-only vs. + TDCP.
# Bars are the ensemble mean; black dots are the individual MC trials.
metrics = {}
for label, runs in mc.items():
    rms = [float(np.sqrt(np.mean(r["pos_error_m"] ** 2))) for r in runs]
    fin = [float(r["pos_error_m"].iloc[-1]) for r in runs]
    metrics[label] = {"RMS position error": rms, "Final position error": fin}

labels = list(metrics)
print(f"{'variant':22s}{'trial':>6}{'RMS pos [m]':>14}{'final pos [m]':>15}")
print("-" * 57)
for label in labels:
    rms, fin = metrics[label]["RMS position error"], metrics[label]["Final position error"]
    for i, (rr, ff) in enumerate(zip(rms, fin)):
        print(f"{label:22s}{i:>6}{rr:>14.2f}{ff:>15.2f}")
    print(f"{label:22s}{'mean':>6}{np.mean(rms):>14.2f}{np.mean(fin):>15.2f}")

fig, axes = plt.subplots(1, 2, figsize=(11, 4))
x = np.arange(len(labels))
colors = ["darkorange", "steelblue"]
for ax, mname in zip(axes, ["RMS position error", "Final position error"]):
    means = [np.mean(metrics[l][mname]) for l in labels]
    ax.bar(x, means, width=0.55, color=colors, alpha=0.55)
    for j, l in enumerate(labels):
        ax.scatter([x[j]] * N_MC, metrics[l][mname], color="k", s=28, zorder=3)
    ax.set_xticks(x)
    ax.set_xticklabels([l.replace(" ", "\n") for l in labels])
    ax.set_ylabel(f"{mname} [m]")
    ax.set_title(f"{mname}  ({N_MC} MC trials)")
    ax.grid(True, axis="y", alpha=0.3)
plt.tight_layout()
plt.show()

variant                trial   RMS pos [m]  final pos [m]
---------------------------------------------------------
Pseudorange only           0         54.62          23.20
Pseudorange only           1         46.90          20.78
Pseudorange only           2         40.30          19.74
Pseudorange only        mean         47.27          21.24
Pseudorange + TDCP         0         39.63          16.07
Pseudorange + TDCP         1         44.04          20.45
Pseudorange + TDCP         2         36.62          20.97
Pseudorange + TDCP      mean         40.10          19.16

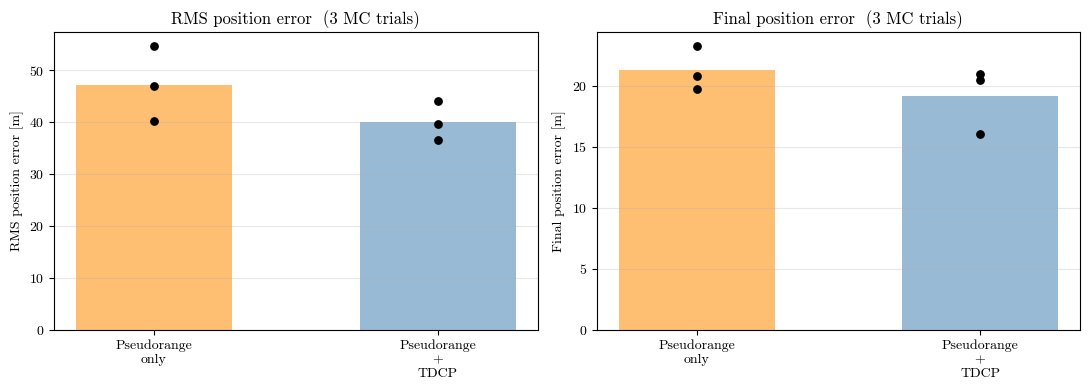

../../_images/tutorial_Python_ex6_gnss_odts_28_1.png

8. Summary

This notebook demonstrated LuPNT’s full lunar-GNSS ODTS pipeline:

  • LunarGnssODTSConfig defines both truth generation and estimator tuning for a lunar receiver.

  • GNSS sidelobe visibility and \(C/N_0\) are precomputed once and cached, separating expensive deterministic geometry from repeated filter runs.

  • Plasmaspheric delay is ray-traced at anchor epochs and interpolated to the 1 Hz measurement grid.

  • Pseudorange uses a dual-frequency ionosphere-free combination when available; Doppler (range rate) constrains velocity and clock drift within each epoch; TDCP defaults to single-frequency (L1) and is handled with stochastic cloning because it couples epochs.

  • TDCP consistency (§7c): because single-frequency TDCP carries the uncancelled plasma-delay change (RMS ~3.6 cm), its measurement noise must be inflated (filter_tdcp_noise_inflation_m = 0.20 m) or the EKF becomes badly overconfident. Ionosphere-free TDCP (tdcp_ionosphere_free) cancels the plasma but halves coverage and does not win here, where the binding residual is the frequency-independent broadcast/clock error rather than the plasma.

  • The EKF estimates orbit, receiver clock, and the SRP coefficient (Cr*A/m) with analytic dynamics sensitivities.

9. Capability demo — running at a FUTURE epoch via the almanac source

Sections 1–8 use date-specific SP3 (precise truth) + BRDC (broadcast) products, so ex6 can only run for the past epochs those files cover. This section runs the same engine at an arbitrary future epoch (2027) using the new constellation.source = "almanac" path:

  • Truth constellation: each GPS satellite’s Keplerian slot is seeded from a YUMA almanac (a small, no-authentication text download — the cell fetches the freshest one, and falls back to the bundled BRDC as the seed when offline), converted to a Cartesian state, then numerically propagated (Earth J2 + Sun/Moon third bodies, RK4) to the run’s epoch grid. This captures the secular orbit-plane drift (RAAN precession, …) a fixed-plane Keplerian model misses. The individual along-track phase is an extrapolation, but the constellation geometry (planes / inclination / MEO altitude) stays realistic.

  • Broadcast error: no precise reference exists at a future epoch, so a modeled synthetic SISE (per-PRN radial/along/cross orbit error + clock error, seeded) is injected through the same filter code path the real broadcast-minus-precise error uses in Sections 1–8.

This is a deliberately short, lower-fidelity capability demo — GPS-only, ~15 min, links built in memory (no 13 h precompute), a single Monte-Carlo trial, and a separate ``output_dir`` so it never touches the Section 1–8 precompute cache. Expect km-level errors: a ~1-year-extrapolated almanac constellation seen only through sparse lunar sidelobes is far weaker than the precise Section 1–8 setup — the point is that the pipeline runs and produces sane measurements at 2027, not that it is precise. Run it once with a live network for the freshest almanac (smaller gap).

Note: this demo is GPS-only (a YUMA almanac carries only GPS) with a relaxed C/N0 gate to keep a usable number of sparse lunar-sidelobe measurements; expect only a few (often 1-3) satellites per epoch and correspondingly km-level errors.

[1]:

# --- Future-epoch (2027) almanac capability demo. Self-contained: safe to run after Section 1. ---
import os, sys, ssl, time, urllib.request
from pathlib import Path
import numpy as np, pandas as pd, matplotlib.pyplot as plt
import pylupnt as pnt
from ex6_gnss_odts_config import load_scenario, DATA_DIR, _REPO

FUTURE_EPOCH = "2027-01-01T02:00:00"
FUTURE_OUT = _REPO / "output" / "python_examples" / "ex6_future_epoch_data"   # separate from Sec 1-8 cache
FUTURE_OUT.mkdir(parents=True, exist_ok=True)

# 1) Seed: try to fetch the freshest YUMA almanac (no Earthdata login). Fall back to bundled BRDC offline.
almanac_file = ""
yuma_path = FUTURE_OUT / "current.alm"
YUMA_URLS = [
    "https://celestrak.org/GPS/almanac/Yuma/current.alm",
    "https://www.navcen.uscg.gov/sites/default/files/gps/almanac/current_yuma.alm",
]
for url in YUMA_URLS:
    try:
        with urllib.request.urlopen(url, timeout=15, context=ssl.create_default_context()) as r:
            data = r.read().decode("ascii", "ignore")
        if "SQRT(A)" in data.upper():
            yuma_path.write_text(data)
            almanac_file = str(yuma_path)
            print(f"Seed: fetched fresh YUMA almanac from {url}")
            break
    except Exception as e:
        print(f"  (YUMA fetch failed for {url}: {type(e).__name__})")
if not almanac_file:
    print("Seed: offline / no almanac reachable -> falling back to the bundled BRDC as the almanac "
          "seed (older, so a larger extrapolation, but the capability path is identical).")

# 2) Build a SHORT future-epoch, almanac-source scenario (GPS-only; no plasma ray-trace / delay table).
scen = load_scenario()
scen["epoch"] = FUTURE_EPOCH
scen["duration"] = "00:15:00"
scen["world"]["plasma"]["simulate_truth"] = False
scen["world"]["plasma"]["model_in_filter"] = False
app = scen["agents"]["receiver"]["application"]
sim = app["simulation"]
sim["start_epoch_utc"] = FUTURE_EPOCH
sim["duration_s"] = 900.0                 # 15 min
sim["ephemeris_dt_s"] = 120.0
sim["output_dir"] = str(FUTURE_OUT)
sim["run_progress_interval_epochs"] = 300
sim["debug_print_matrix_epochs"] = 0
app["pipeline"]["links_file"] = str(FUTURE_OUT / "precomputed_links.csv")
app["pipeline"]["delays_file"] = str(FUTURE_OUT / "precomputed_delays.csv")
c = app["constellation"]
c["source"] = "almanac"                    # <-- the new capability
c["almanac_file"] = almanac_file           # "" -> seed from the bundled BRDC
c["brdc_directory"] = str((DATA_DIR / "ephemeris" / "gnsslibpy" / "brdc").resolve())
c["include_galileo"] = False               # GPS-only keeps the numerical propagation quick
# Modeled broadcast SISE (defaults shown for transparency): per-PRN radial/along/cross + clock [m].
c["synthetic_sise_radial_m"] = 0.3
c["synthetic_sise_along_m"] = 0.8
c["synthetic_sise_cross_m"] = 0.8
c["synthetic_sise_clock_m"] = 0.5
# Relax the C/N0 acquisition/tracking gate so more of the weak GPS sidelobe signals are
# tracked at lunar distance (a capability-demo relaxation; Sections 1-8 use the stricter
# default 22/20 dB-Hz gate). GPS-only sidelobe visibility from a lunar ELFO is inherently
# sparse, so this keeps a usable number of measurements per epoch.
lb = app["design"]["custom"]["link_budget"]
lb["cn0_acquisition_threshold_dbhz"] = 15.0
lb["cn0_tracking_threshold_dbhz"] = 13.0

# 3) Run: builds the almanac constellation (seed + J2/3-body propagation) and links in memory, then the EKF.
print(f"\nRunning the future-epoch almanac demo at {FUTURE_EPOCH} (seed + propagate ~1 yr, then EKF)...")
t0 = time.time()
sim_future = pnt.Simulation(scen)
app_future = sim_future.get_agent("receiver").get_application()
sim_future.run()
print(f"done in {time.time() - t0:.0f} s")

s = app_future.get_summaries()[0]
print(f"\n[2027 almanac demo] over {s.num_epochs} epochs (GPS-only, almanac source + modeled SISE):")
print(f"  final 3D position error : {s.final_position_error_m:9.1f} m")
print(f"  RMS   3D position error : {s.rms_position_error_m:9.1f} m")
print(f"  final clock-bias error  : {s.final_clock_bias_error_m:9.1f} m")

# 4) Show it produced sane measurements + a converging EKF (km-level, as expected for this demo).
tf = pd.read_csv(FUTURE_OUT / "trajectory_mc0.csv")
tf["t_min"] = tf["t"] / 60.0
print(f"  measurements: {tf['num_tracked_satellites'].mean():.1f} GPS sats tracked / epoch "
      f"(min {int(tf['num_tracked_satellites'].min())}, max {int(tf['num_tracked_satellites'].max())}), "
      f"{tf['num_measurements'].mean():.1f} meas / epoch")

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 3.4))
ax1.plot(tf["t_min"], tf["pos_error_m"] / 1e3, color="C3")
ax1.set_xlabel("time [min]"); ax1.set_ylabel("3D position error [km]")
ax1.set_title("EKF position error at a 2027 epoch (almanac source)")
ax1.grid(True, alpha=0.3)
ax2.plot(tf["t_min"], tf["num_tracked_satellites"], drawstyle="steps-post", color="C0")
ax2.set_xlabel("time [min]"); ax2.set_ylabel("tracked GPS satellites")
ax2.set_title("Sidelobe GPS visibility (almanac constellation)")
ax2.grid(True, alpha=0.3)
fig.tight_layout(); plt.show()

[00.00][PyLuPNT] Initializing
  (YUMA fetch failed for https://celestrak.org/GPS/almanac/Yuma/current.alm: HTTPError)
Seed: fetched fresh YUMA almanac from https://www.navcen.uscg.gov/sites/default/files/gps/almanac/current_yuma.alm

Running the future-epoch almanac demo at 2027-01-01T02:00:00 (seed + propagate ~1 yr, then EKF)...
done in 171 s

[2027 almanac demo] over 901 epochs (GPS-only, almanac source + modeled SISE):
  final 3D position error :    8522.0 m
  RMS   3D position error :   18665.1 m
  final clock-bias error  :    4621.7 m
[03.53][/Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/lunar_gnss_odts/lunar_gnss_odts.h5] Output file: {}
[03.54][Simulation] Output file: /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/lunar_gnss_odts/lunar_gnss_odts.h5
[03.54][Simulation] Log level set to INFO
[03.75][Agent] No frequency set for lunar_gnss_odts/receiver
[03.75][Simulation] Saved config to /Users/keidaiiiyama/Documents/sw_navlab/LuPNT/output/lunar_gnss_odts/config.yaml
[03.75][Simulation] Simulation started

  0%|          | 0/100 [00:00<00:00, 0.0 it/s]
[03.75][Simulation]   0%|          | 0/100 [00:00<00:00, 0.0 it/s]
[03.80][LunarGnssODTS] No GNSS link cache found; computing links in-memory for this run.

[03.75][Simulation]   0%|          | 0/100 [00:00<00:00, 0.0 it/s]
[03.80][LunarGnssODTS] Setting up GNSS constellations from ALMANAC seed + numerical propagation (J2 + Sun/Moon)...

[03.75][Simulation]   0%|          | 0/100 [00:00<00:00, 0.0 it/s]
[02:53.56][LunarGnssODTS] 2 GNSS constellation-frequency set(s) ready (almanac source)

[03.75][Simulation]   0%|          | 0/100 [02:49<00:00, 0.0 it/s]
[02:53.56][LunarGnssODTS] Precompute GNSS links: starting (1802 steps)

[03.75][Simulation]   0%|          | 0/100 [02:49<00:00, 0.0 it/s]
[02:54.05][LunarGnssODTS] Precompute GNSS links: 1802/1802 (100.0%), elapsed 0.5 s -- done

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.05][LunarGnssODTS] Precompute GNSS links: 1802/1802 (100.0%), elapsed 0.5 s -- done

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.06][LunarGnssODTS] Running EKF over 901 epochs (mc 0)

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.06][LunarGnssODTS] Synthetic SISE injection enabled (almanac source, 10 satellites)

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.06][LunarGnssODTS] epoch 1/901 (0.1%): pos 189.1 m, clk 595.6 m, 5 sat, 5 meas, SRP 0.232e-3 [0.0s]

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.28][LunarGnssODTS] epoch 301/901 (33.4%): pos 3157.7 m, clk 3061.6 m, 4 sat, 11 meas, SRP 0.233e-3 [0.2s]

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.50][LunarGnssODTS] epoch 601/901 (66.7%): pos 30956.9 m, clk 30899.3 m, 5 sat, 12 meas, SRP 0.251e-3 [0.4s]

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.74][LunarGnssODTS] epoch 901/901 (100.0%): pos 8522.0 m, clk 4621.7 m, 6 sat, 14 meas, SRP 0.223e-3 [0.7s]

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[02:54.74][LunarGnssODTS] EKF done (mc 0) in 0.7s: final pos error 8521.99 m, RMS 18665.07 m

[03.75][Simulation]   0%|          | 0/100 [02:50<00:00, 0.0 it/s]
[03.75][Simulation] 100%|██████████| 100/100 [02:50<00:00, 0.6 it/s]
[02:54.75][Simulation] Simulation finished
[02:54.75][DataLogger] Saving data
  measurements: 4.7 GPS sats tracked / epoch (min 4, max 6), 12.0 meas / epoch

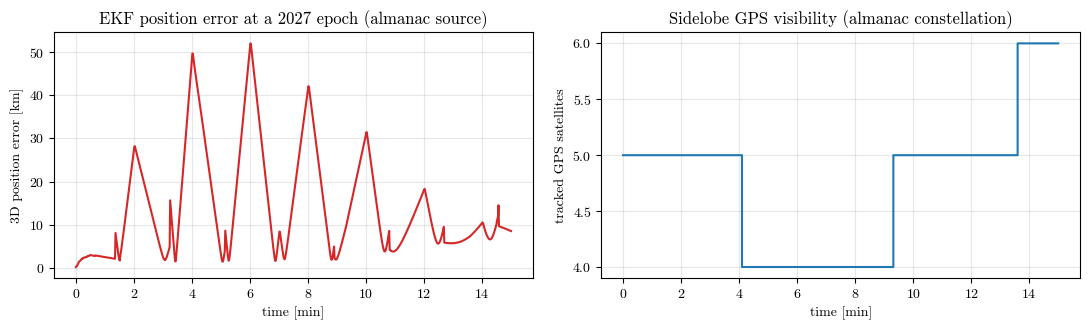

../../_images/tutorial_Python_ex6_gnss_odts_31_1.png
